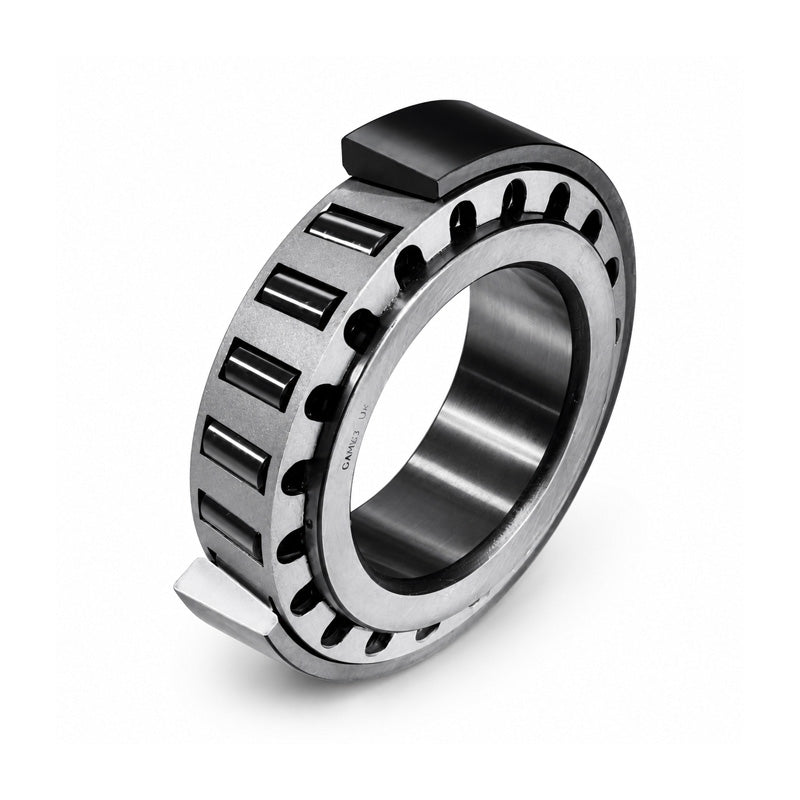

Gamet 140085/140140 Super Precision Tapered Roller Bearing Plain Cup Type 85x140x38.5mm - Allow 7-10 Days
Gamet 140085/140140 Super Precision Tapered Roller Bearing Plain Cup Type 85x140x38.5mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Tapered Roller Bearing Plain Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, the basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement. Cone Bore Run-out tolerances range from 0.5 microns to 1.5 microns. Quality assured to BS EN ISO 9001:2000 standards. Benefits: Cost-effective, high quality bearing materials, quality assured. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 140mm
- Width:
- 38.5mm
Technical
Technical
| d | 85.000mm |
|---|---|
| D | 140.000mm |
| T | 36.50mm |
| C | 28.57mm |
| B | 38.50mm |
| F | 7.93mm |
| da | 100mm |
| Da | 128mm |
| r | 3.00mm |
| R | 3.00mm |
| Radial static stiffness | 100 daN/µ |
| Axial static stiffness | 15 daN/µ |
| Radial basic rating 10,000hrs@500rpm | 2925 daN |
| Axial basic rating 10,000hrs@500rpm | 1410 daN |
| Max speed | 4900 rpm |
| Weight | 1.840kg |
| Cone | 140085 |
| Cup | 140140 |
