SKU: 160-2-SYN-NO12-RENOLD
Renold Synergy 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €923.91 ex VAT
- Sale price
- €923,91
- Regular price
-
Not in stock
Quantity Price Breaks
2
€822.28
5
€776.08
10
€766.85
29
€757.61
49
€748.37
75
€739.13
100
€692.93
200
€683.69
250
€674.45
500
€665.22
1000
€646.74
SKU:
160-2-SYN-NO12-RENOLD
Renold Synergy 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €923.91 ex VAT
- Sale price
- €923,91
- Regular price
-
Description

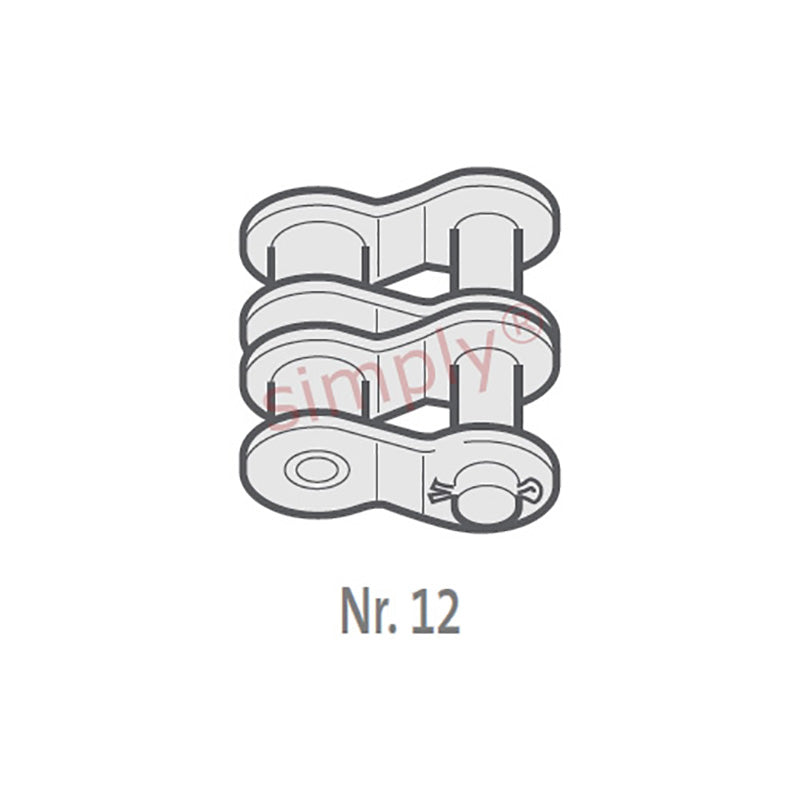

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48.26mm |
| Plate Width Inner max (E) | = | 6.35mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 14.29mm |
| Pin Length max (H2) | = | 121.6mm |
| Connecting Link Extension max (J) | = | 6.5mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 446000 N |
| Weight | = | 0.87kg/m |
