SKU: 160-3-SYN-NO11-RENOLD
Renold Synergy 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- €691.00 ex VAT
- Sale price
- €691,00
- Regular price
-
Not in stock
Quantity Price Breaks
2
€614.99
5
€580.44
10
€573.53
29
€566.62
49
€559.71
75
€552.80
100
€518.25
200
€511.34
250
€504.43
500
€497.52
1000
€483.70
SKU:
160-3-SYN-NO11-RENOLD
Renold Synergy 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- €691.00 ex VAT
- Sale price
- €691,00
- Regular price
-
Description

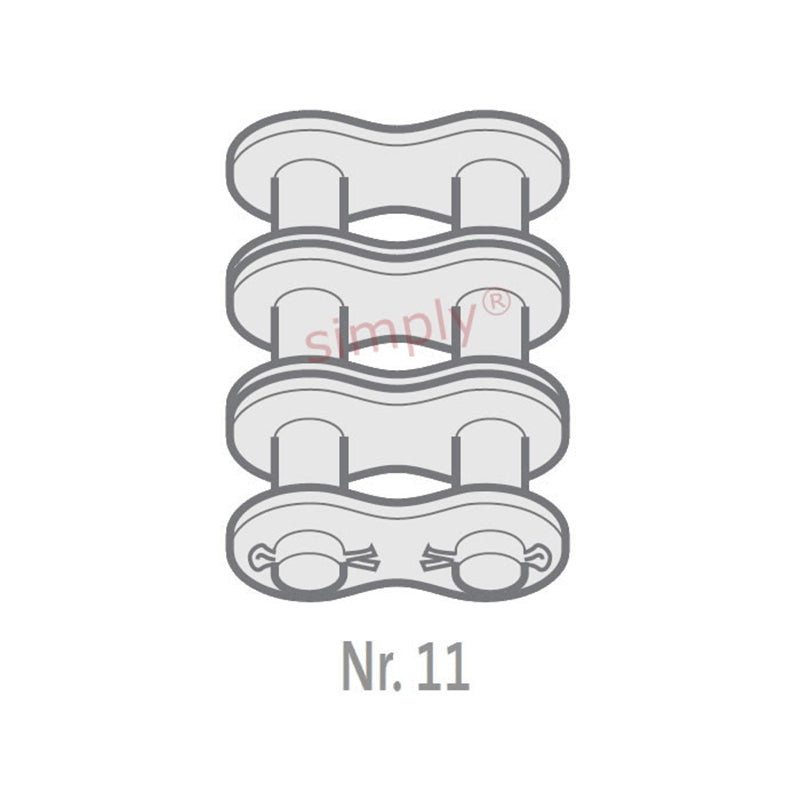

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48.26mm |
| Plate Width Inner max (E) | = | 6.35mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 14.29mm |
| Pin Length max (H2) | = | 180.2mm |
| Connecting Link Extension max (J) | = | 6.5mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 669000 N |
| Weight | = | 0.87kg/m |
