SKU: 16010-NACHI

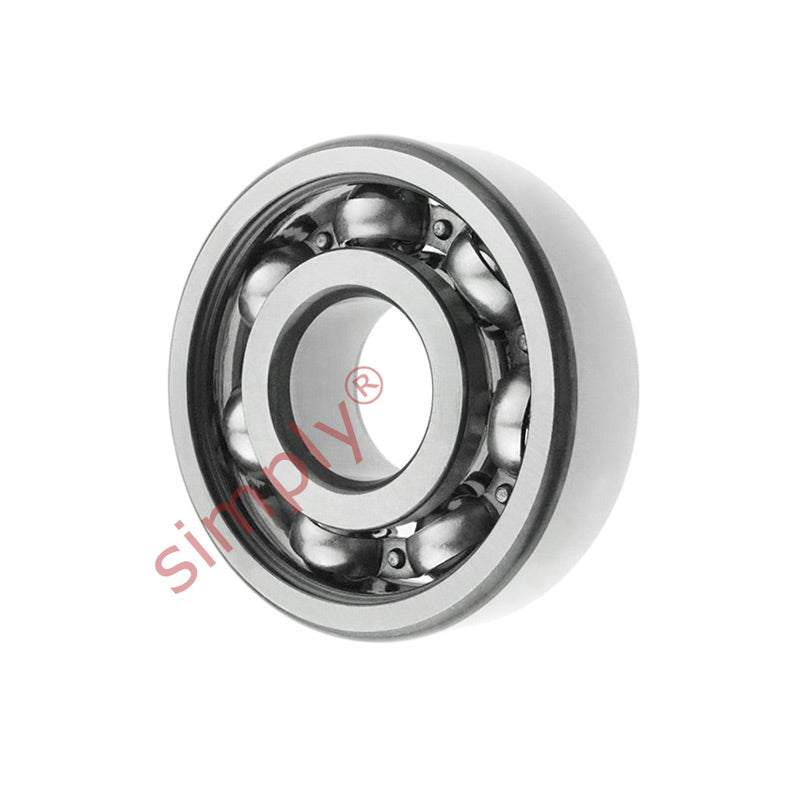

NACHI 16010 Open Deep Groove Ball Bearing 50x80x10mm
NACHI 16010 Open Deep Groove Ball Bearing 50x80x10mm
Regular price
€21,33
ex VAT
Regular price
Sale price
€21,33
ex VAT
In stock
Price Break
5+
€16,21
9+
€15,30
19+
€15,11
29+
€14,93
49+
€14,75
74+
€14,57
99+
€13,66
199+
€13,48
249+
€13,29
499+
€13,11
999+
€12,75
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 80mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 16100 kN |
| Static load | 13100 kN |
| Max speed in oil | 10000 rpm |
| Max speed in grease | 8500 rpm |
| da min | 57mm |
| Da max | 73mm |
| ra max | 0.6mm |
| Weight | 0.18 kg |
