SKU: 16012-NACHI

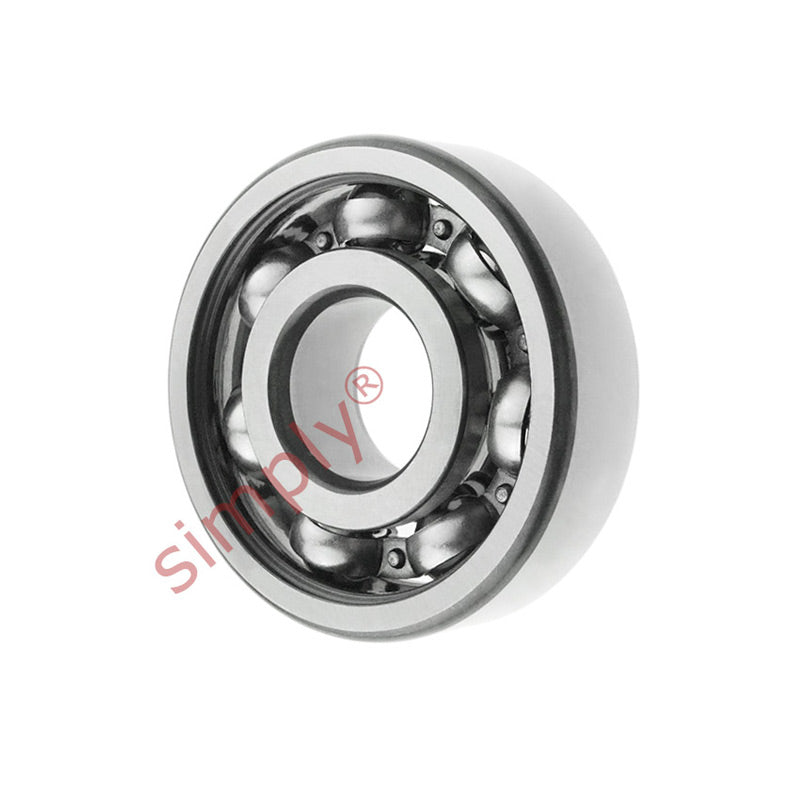

NACHI 16012 Open Deep Groove Ball Bearing 60x95x11mm
NACHI 16012 Open Deep Groove Ball Bearing 60x95x11mm
Regular price
€38,86
ex VAT
Regular price
Sale price
€38,86
ex VAT
In stock
Price Break
5+
€29,53
9+
€27,87
19+
€27,54
29+
€27,21
49+
€26,88
74+
€26,54
99+
€24,88
199+
€24,55
249+
€24,22
499+
€23,89
999+
€23,23
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 60mm |
|---|---|
| Outside Diameter D | 95mm |
| Width B | 11mm |
| Min radius r | 0.6mm |
| Dynamic load | 16200 kN |
| Static load | 14300 kN |
| Max speed in oil | 8500 rpm |
| Max speed in grease | 7100 rpm |
| da min | 67mm |
| Da max | 88mm |
| ra max | 0.6mm |
| Weight | 0.28 kg |
