SKU: 1623-RS-MB

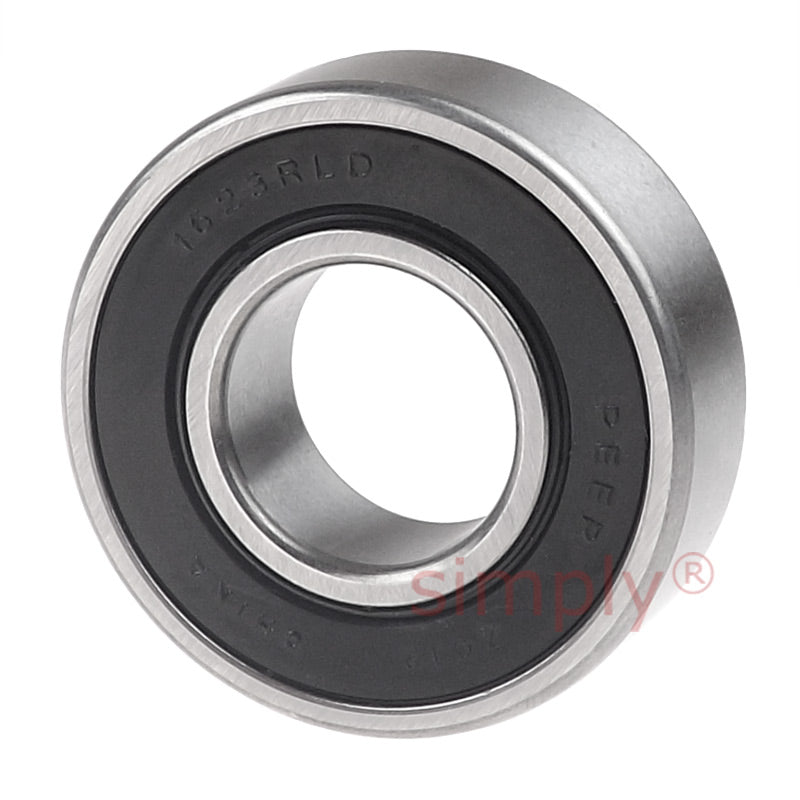

Major Branded 1623RS Open Type with 1 Rubber Seal Deep Groove Ball Bearing 0.625x1.375x0.4375 inch
- Regular price
- €8.05 ex VAT
- Sale price
- €8,05
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
5
€7.16
9
€6.76
19
€6.68
29
€6.60
49
€6.52
74
€6.44
99
€6.04
199
€5.96
249
€5.88
499
€5.80
999
€5.64
Description
Open Type with 1 Rubber Seal Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with 1 rubber seal inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life.

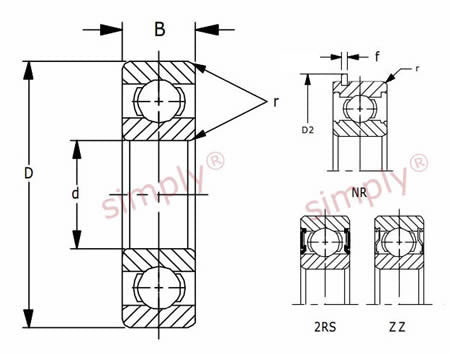

Technical
| Bore (d) | = | 0.625 inch = 15.875mm (Tolerance +.0000 to minus 0.0005) |
| Outside Diameter (D) | = | 1.375 inch = 34.925mm (Tolerance +.0000 to minus 0.0005) |
| Width (B) | = | 0.4375 inch = 11.1125mm (Tolerance +.0000 to minus 0.005) |
| Maximum (r) | = | 0.025 inch |
| Load Ratings Dynamic | = | 1890 lbf |
| Load Ratings Static | = | 836 lbf |
