SKU: 163150/163210C-GAMET

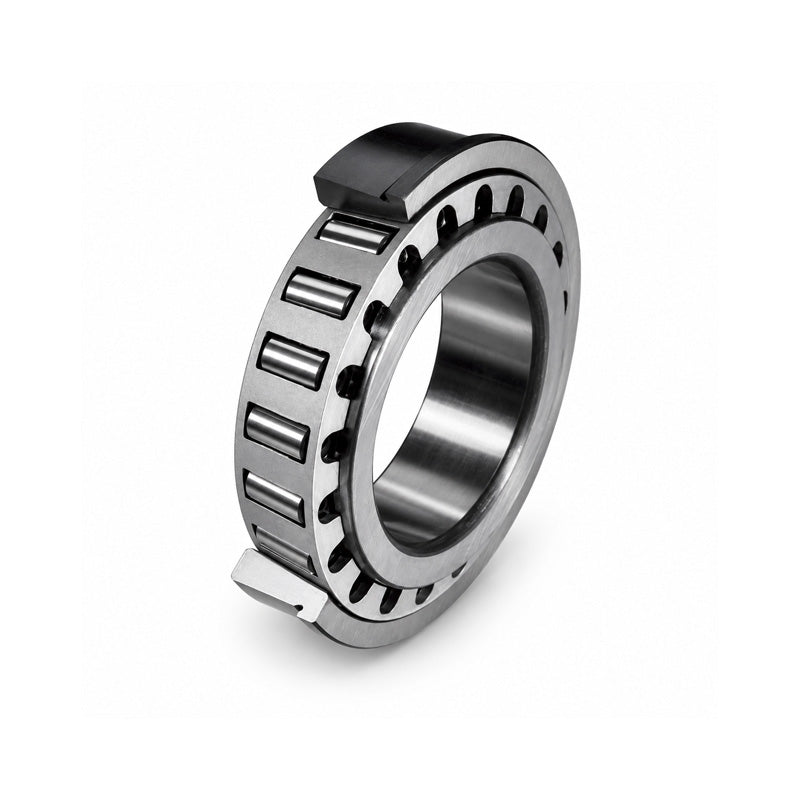

Gamet 163150/163210C Super Precision Tapered Roller Bearing Flanged Cup Type 150x210x42mm - Allow 7-10 Days
Gamet 163150/163210C Super Precision Tapered Roller Bearing Flanged Cup Type 150x210x42mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Tapered Roller Bearing Flanged Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, the basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement. The flanged cup design enables through boring of the housing for simplicity and accuracy. Cone Bore Run-out tolerances range from 0.5 microns to 1.5 microns. Quality assured to BS EN ISO 9001:2000 standards. Benefits: Cost-effective, high quality bearing materials, quality assured. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 210mm
- Width:
- 42mm
Technical
Technical
| d | 150.000mm |
|---|---|
| D | 210.000mm |
| T | 38.00mm |
| C | 30.00mm |
| B | 42.00mm |
| F | 8.00mm |
| G | 14.50mm |
| H | 6.50mm |
| J | 216.50mm |
| da | 170mm |
| r | 1.00mm |
| R | 3.00mm |
| Radial static stiffness | 160 daN/µ |
| Axial static stiffness | 34 daN/µ |
| Radial basic rating 10000hrs@500rpm | 4710 daN |
| Axial basic rating 10000hrs@500rpm | 3185 daN |
| Max speed | 3000 rpm |
| Weight | 4.780kg |
| Cone | 163150 |
| Cup | 163210C |
