SKU: 16B-1-SD-NO26-RENOLD
Renold SD 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold SD 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
€7,64
ex VAT
Regular price
Sale price
€7,64
ex VAT
In stock
Price Break
2+
€5,81
5+
€5,48
10+
€5,41
29+
€5,35
49+
€5,28
75+
€5,22
100+
€4,89
200+
€4,83
250+
€4,76
500+
€4,70
1000+
€4,57
Quantity
Couldn't load pickup availability
Description
Description

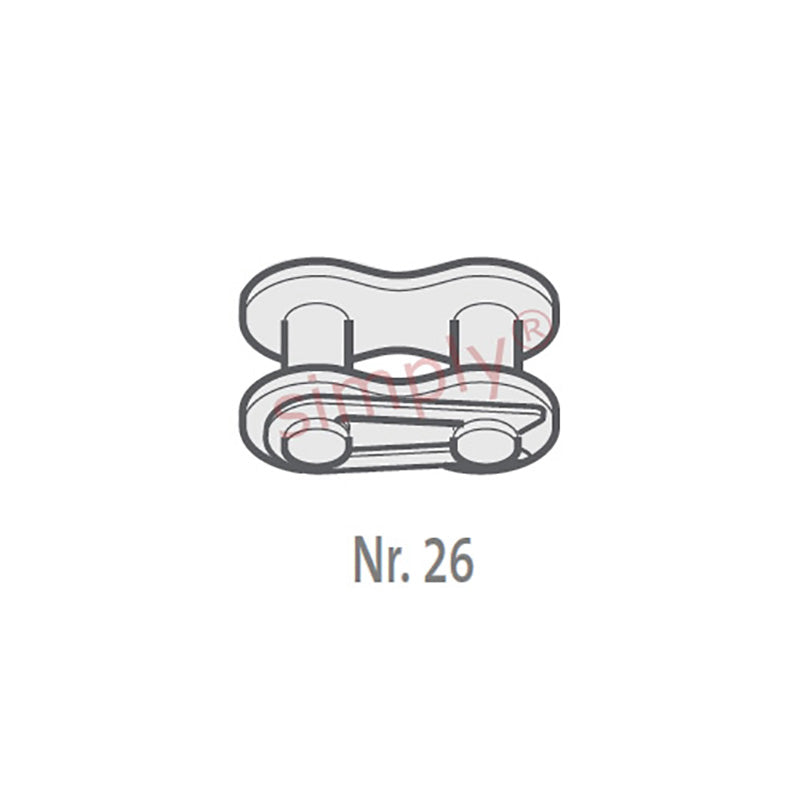

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 36mm |
| Connecting Link Extension max (J) | 1.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.008kg/m |
