SKU: 16B-3-BB-NO30-RENOLD
Renold Blue Box 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €74.14 ex VAT
- Sale price
- €74,14
- Regular price
-
Not in stock
Quantity Price Breaks
2
€65.98
5
€62.28
10
€61.54
29
€60.79
49
€60.05
75
€59.31
100
€55.61
200
€54.86
250
€54.12
500
€53.38
1000
€51.90
SKU:
16B-3-BB-NO30-RENOLD
Renold Blue Box 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €74.14 ex VAT
- Sale price
- €74,14
- Regular price
-
Description

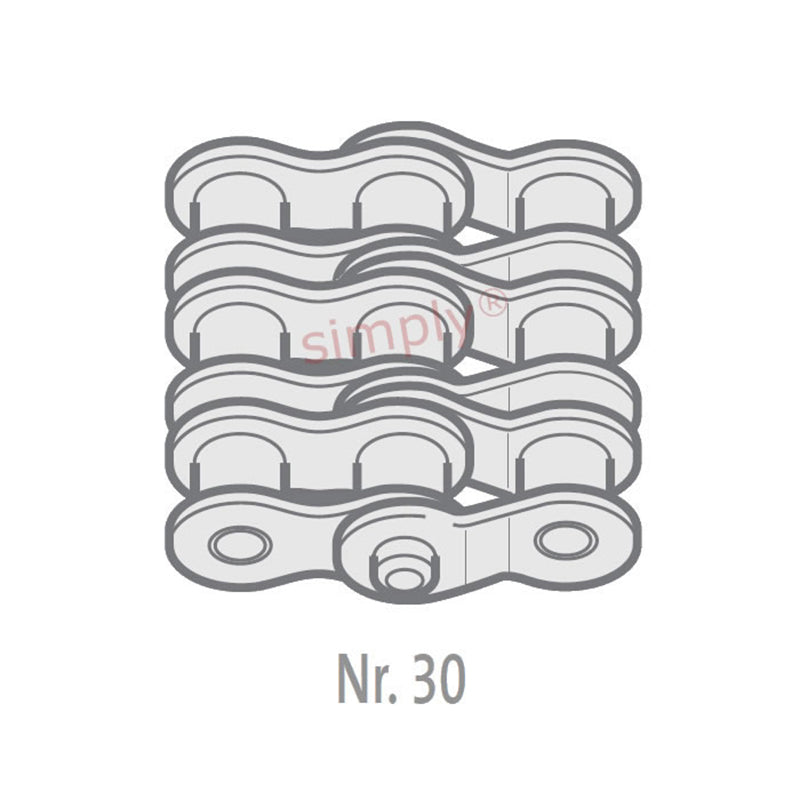

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 3.76mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H2) | = | 98.6mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| Transverse Pitch nom (K) | = | 31.88mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.046kg/m |
