SKU: 16B-3-SYN-NO30-RENOLD
Renold Synergy 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €178.78 ex VAT
- Sale price
- €178,78
- Regular price
-
Not in stock
Quantity Price Breaks
2
€159.11
5
€150.18
10
€148.39
29
€146.60
49
€144.81
75
€143.02
100
€134.09
200
€132.30
250
€130.51
500
€128.72
1000
€125.15
SKU:
16B-3-SYN-NO30-RENOLD
Renold Synergy 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €178.78 ex VAT
- Sale price
- €178,78
- Regular price
-
Description

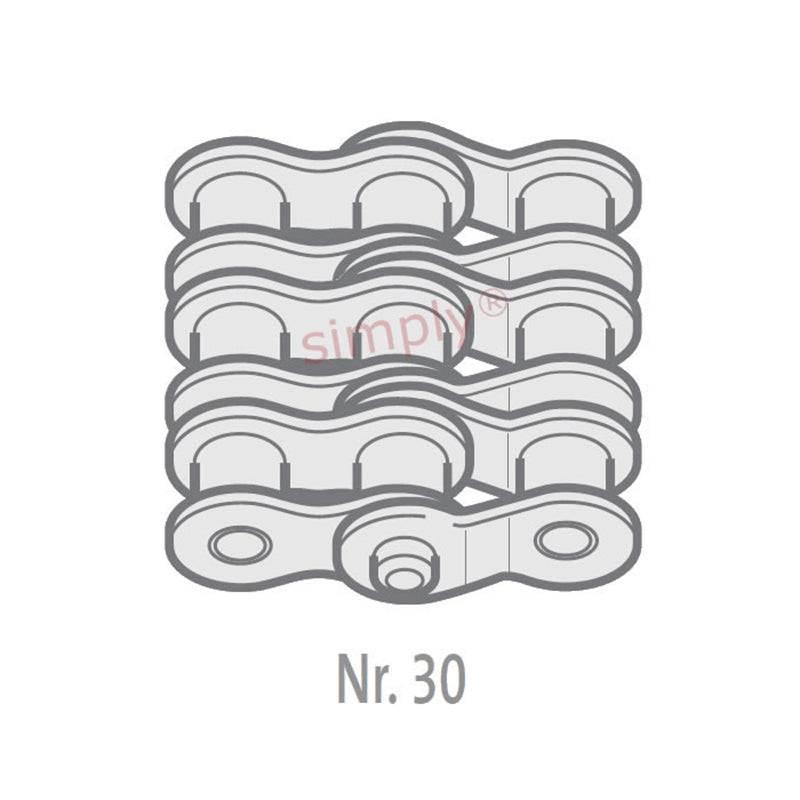

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H2) | = | 98.6mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| Transverse Pitch nom (K) | = | 31.88mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.046kg/m |
