SKU: 16x22x4_UNP1_NAK

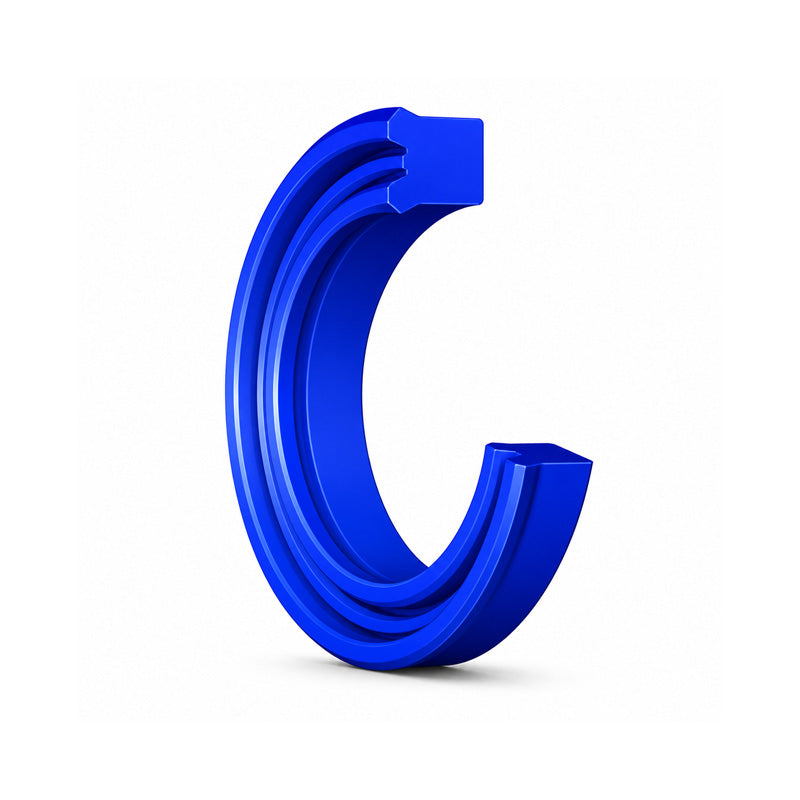

NAK 16x22x4mm UNP1 Nitrile Symmetrical Seal - Allow 7-10 Days
- Regular price
- €3.61 ex VAT
- Sale price
- €3,61
- Regular price
-
Not in stock
Quantity Price Breaks
10
€3.21
19
€3.03
29
€3.00
39
€2.96
49
€2.92
74
€2.89
99
€2.71
199
€2.67
249
€2.64
499
€2.60
999
€2.53
SKU:
16x22x4_UNP1_NAK
NAK 16x22x4mm UNP1 Nitrile Symmetrical Seal - Allow 7-10 Days
- Regular price
- €3.61 ex VAT
- Sale price
- €3,61
- Regular price
-
Description
NAK UNP1 Symmetrical Seals: UNP1 symmetrical seals are robust, single-acting hydraulic seals with a refined symmetrical lip design, specifically engineered for high-performance sealing in both piston and rod applications. Their enhanced geometry ensures consistent sealing performance while allowing for flexible installation in either position, making them a reliable choice for modern hydraulic systems.
Benefits: Enhanced sealing efficiency, flexible installation, universal compatibility with piston and rod configurations

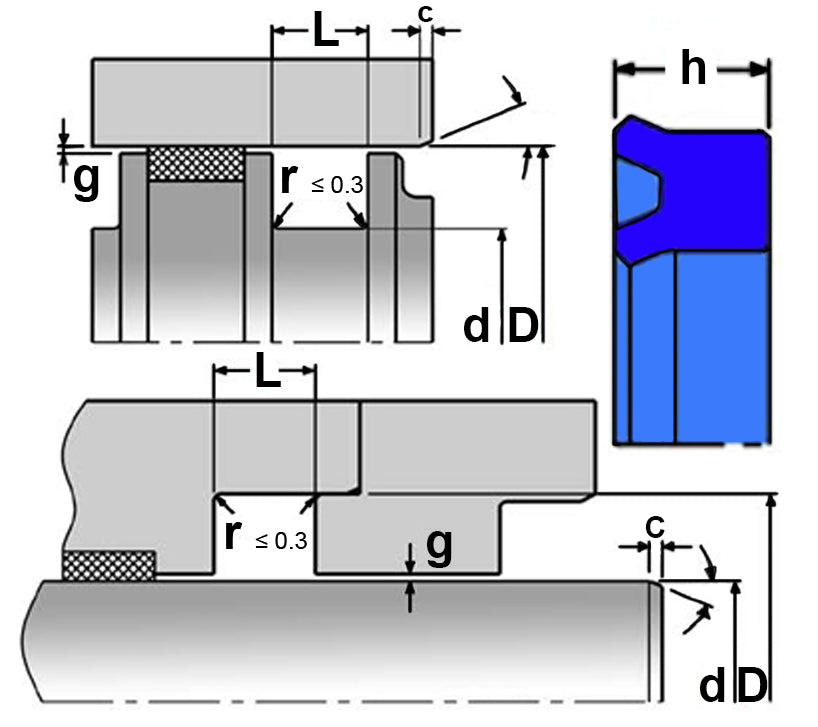

Technical
| d | = | 16mm |
| D | = | 22mm |
| L | = | 4.7mm |
| h | = | 4mm |
| C | = | 3mm |
| Inside Diameter Tolerance | = | h10 |
| Outside Diameter Tolerance | = | H9 |
| Length Tolerance | = | 0.2mm |
| Pressure (max) | = | 40 Mpa |
| Sliding Speed (max) | = | 0.5 m/s |
| Temperature | = | -40 Deg C to +100 Deg C |
| Colour | = | Blue |
