SKU: 170ASPA1-ALUM

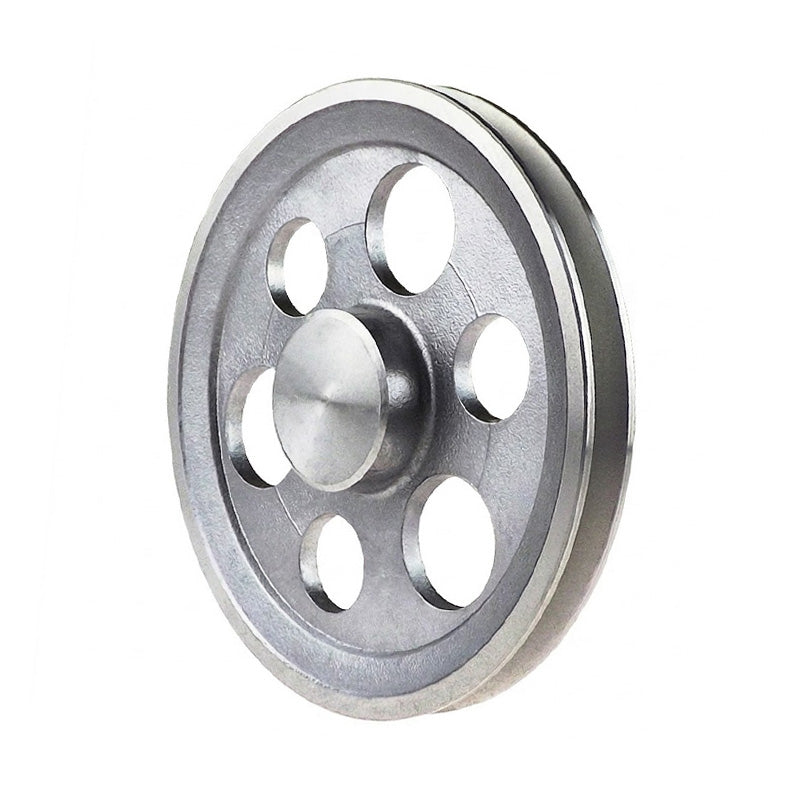

SPA Section Un-Bored Aluminium Pulley with 1 Groove 170mm Pitch Diameter
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Quantity Price Breaks
SPA Section Un-Bored Aluminium Pulley with 1 Groove 170mm Pitch Diameter
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Description
SPA Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.
Technical
| Number of Grooves | = | 1 |
| Outer Diameter | = | 177mm |
| Pitch | = | 170mm |
| Hub Diameter | = | 56mm |
| Hub Width | = | 31mm |
| Weight | = | 0.723kg |
