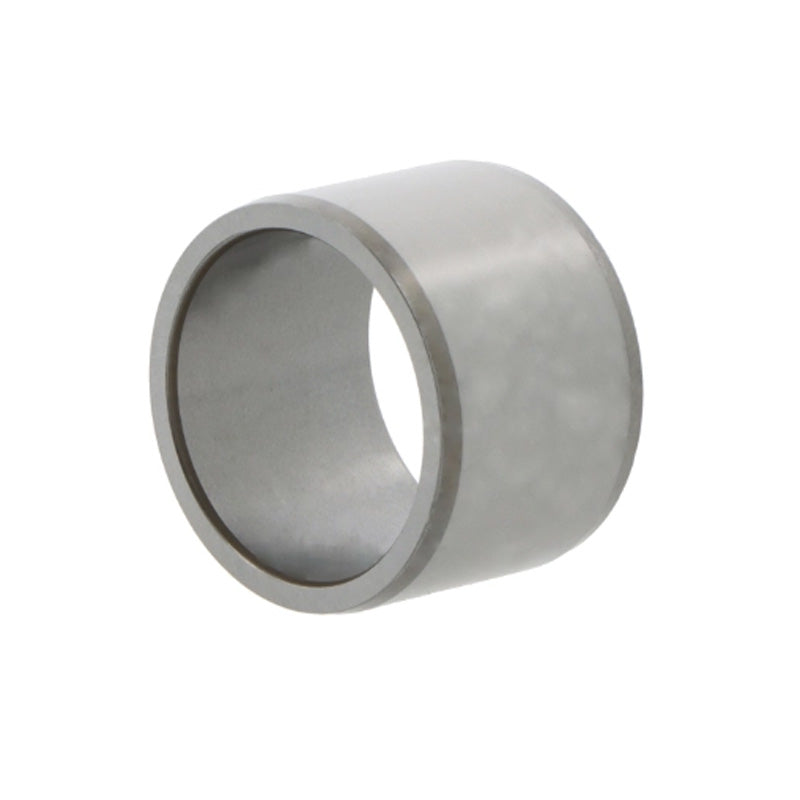

• NTN 1R12X16X20 Needle Roller Inner Race 12x16x20mm
1 1

SKU: 1R12X16X20-NTN

NTN 1R12X16X20 Needle Roller Inner Race 12x16x20mm

NTN 1R12X16X20 Needle Roller Inner Race 12x16x20mm
€7,27 ex VAT
€7,27 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,53
4+ €5,22
9+ €5,15
19+ €5,09
49+ €5,03
99+ €4,97
499+ €4,66
999+ €4,60
1999+ €4,53
2999+ €4,47
4999+ €4,35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JWXGKWRH8Y
Brand / Quality:
NTN - High Quality
Inside Diameter:
12mm
Outside Diameter:
16mm
Width:
20mm
Technical
d - Inside diameter 12mm
F - Outside diameter 16mm
B - Width 20mm
r - Minimum fillet radius 0.3mm
Lubrication hole on inner ring? No
t - Chamfer length 1.5mm
Precision class P0
da min - Minimum shoulder diameter 14mm
ras max - Maximum shaft & housing filler radius 0.3mm
