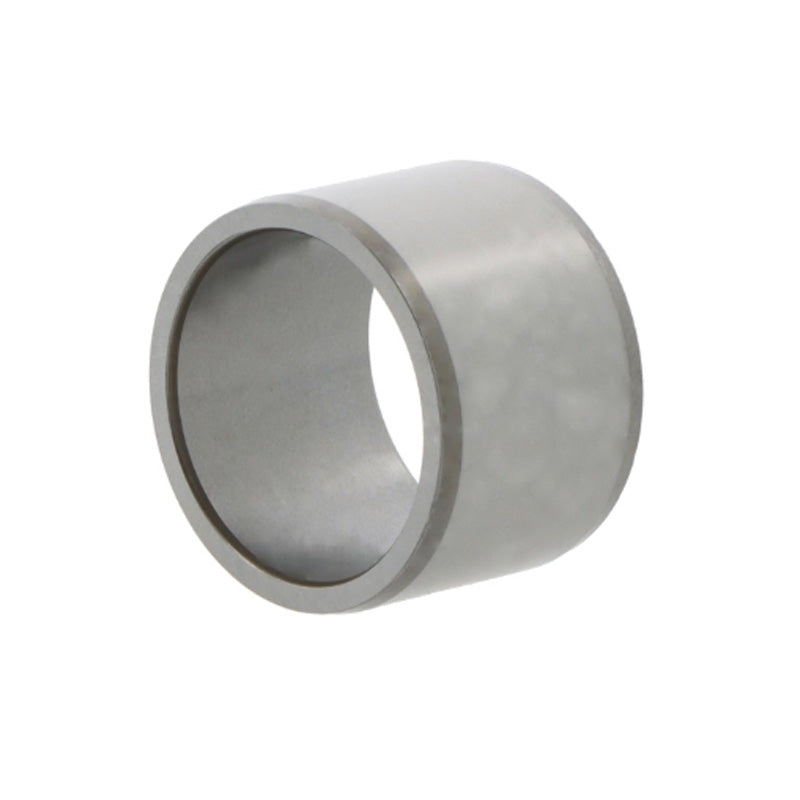

• NTN 1R22X28X23 Needle Roller Inner Race 22x28x23mm - Allow 2-3 Days
1 1

SKU: 1R22X28X23-NTN

NTN 1R22X28X23 Needle Roller Inner Race 22x28x23mm - Allow 2-3 Days

NTN 1R22X28X23 Needle Roller Inner Race 22x28x23mm - Allow 2-3 Days
€9,57 ex VAT
€9,57 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,27
4+ €6,86
9+ €6,78
19+ €6,70
49+ €6,62
99+ €6,54
499+ €6,13
999+ €6,05
1999+ €5,96
2999+ €5,88
4999+ €5,72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JWXGKWRH8Y
Brand / Quality:
NTN - High Quality
Inside Diameter:
22mm
Outside Diameter:
28mm
Width:
23mm
Technical
d - Inside diameter 22mm
F - Outside diameter 28mm
B - Width 23mm
r - Minimum fillet radius 0.3mm
Lubrication hole on inner ring? No
t - Chamfer length 1.8mm
Precision class P0
da min - Minimum shoulder diameter 24mm
ras max - Maximum shaft & housing filler radius 0.3mm
