SKU: 20218-K-MB-C3+H218-MB
20218KMBC3 Barrel Roller Bearing with Taper Bore and H218 Adaptor Sleeve 80x160x30mm - Allow 2-3 Days
- Regular price
- €463.12 ex VAT
- Sale price
- €463,12
- Regular price
-
Not in stock
Quantity Price Breaks
3
€412.18
4
€389.02
9
€384.39
19
€379.76
29
€375.13
39
€370.50
49
€347.34
59
€342.71
249
€338.08
499
€333.45
999
€324.18
SKU:
20218-K-MB-C3+H218-MB
20218KMBC3 Barrel Roller Bearing with Taper Bore and H218 Adaptor Sleeve 80x160x30mm - Allow 2-3 Days
- Regular price
- €463.12 ex VAT
- Sale price
- €463,12
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. This bearing is also available with an adaptor sleeve for locating purposes. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C. to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |

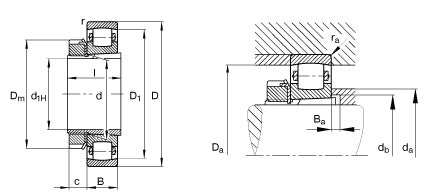

Technical
| d1H | = | 80mm |
| D | = | 160mm |
| B | = | 30mm |
| Ba min | = | 6mm |
| c | = | 18mm |
| D1 | = | 143.8mm |
| Da max | = | 149mm |
| Dm | = | 120mm |
| d | = | 90mm |
| da max | = | 108mm |
| db min | = | 95mm |
| l | = | 52mm |
| ra max | = | 2mm |
| r min | = | 2mm |
| Adaptor sleeve | = | H218 |
| Dynamic radial load Cr | = | 173000 N |
| Static radial load C0r | = | 220000 N |
| Limiting speed nG | = | 2000 rpm |
| Fatigue limit radial load Cur | = | 22000 N |
| Weight | = | 3.89 kg |
