SKU: 20222-MB-MB

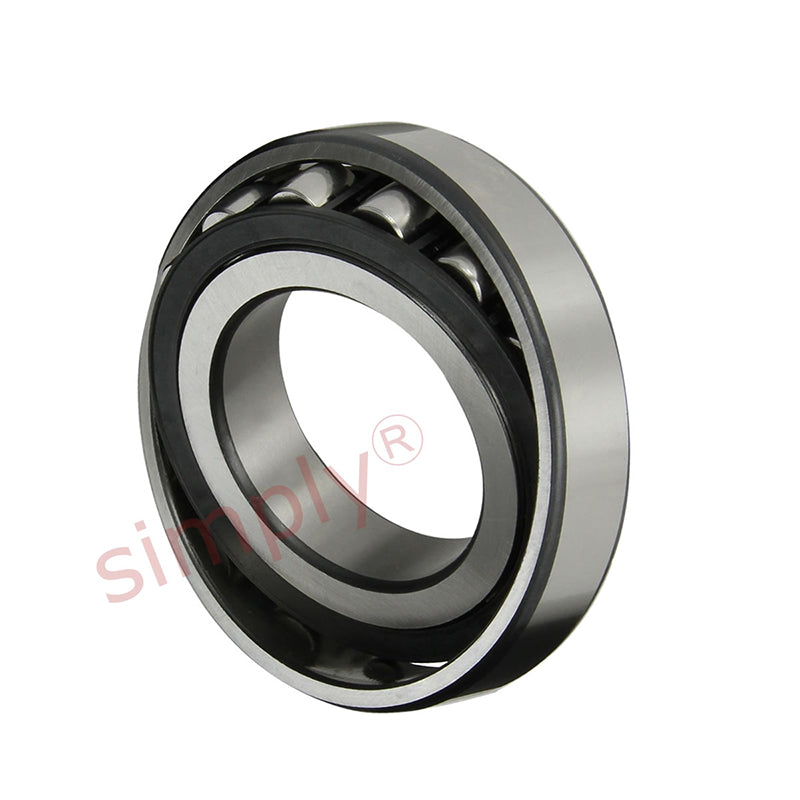

20222MB Barrel Roller Bearing with Cylindrical Bore 110x200x38mm - Allow 2-3 Days
20222MB Barrel Roller Bearing with Cylindrical Bore 110x200x38mm - Allow 2-3 Days
Regular price
€736,17
ex VAT
Regular price
Sale price
€736,17
ex VAT
In stock
Price Break
3+
€559,46
4+
€528,03
9+
€521,74
19+
€515,46
29+
€509,17
39+
€502,88
49+
€471,45
59+
€465,17
249+
€458,88
499+
€452,59
999+
€440,02
Quantity
Couldn't load pickup availability
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 38mm |
| r min | 2.1mm |
| D1 | 178.6mm |
| da min | 122mm |
| Da max | 188mm |
| ra max | 2.1mm |
| Dynamic Load Cr | 285000 N |
| Static Load C0r | 375000 N |
| Fatigue limit load Cur | 34500 N |
| Limiting speed nG | 1700 rpm |
| Weight | 5.53 kg |
