SKU: 203KRR5-MB

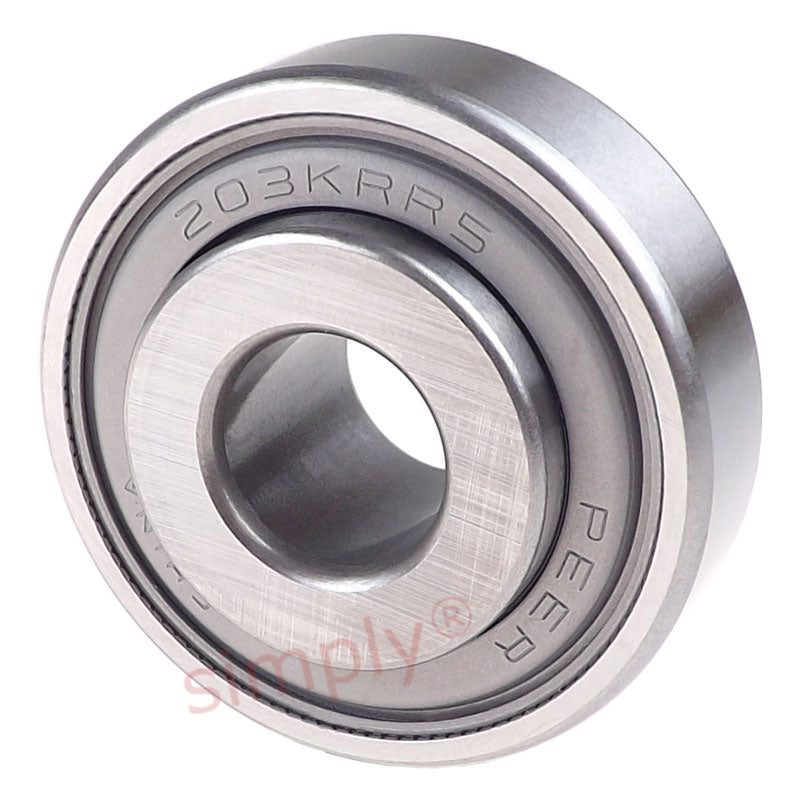

Major Branded 203KRR5 Seeder Bearing 0.515x1.5748x0.72 inch
Major Branded 203KRR5 Seeder Bearing 0.515x1.5748x0.72 inch
Regular price
€8,82
ex VAT
Regular price
Sale price
€8,82
ex VAT
Equivalent to: 203RRAR8, 203KRR5, 203RRAR8, 611928R91, 522-20SP, 562134
In stock
Price Break
5+
€6,70
9+
€6,33
19+
€6,25
29+
€6,18
49+
€6,10
74+
€6,03
99+
€5,65
199+
€5,57
249+
€5,50
499+
€5,42
999+
€5,27
Quantity
Couldn't load pickup availability
Description
Description
Seal Type: R, RST
Typical Application: Lawn and Garden Applications
Typical Environment: Less Contaminative Environment
Contamination Exclusion: Mild/Moderate
Speed Limit: Basic BRG. Size < 205: 3500 RPM, Basic BRG. Size > 205: 2000 RPM
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 13.08mm = 0.515 inch
- Outside Diameter:
- 39.99mm = 1.574 inch
- Width:
- 18.28mm = 0.72 inch
Technical
Technical
| d | 0.515 inch = 13.081mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 1.5748 inch = 39.99992mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.72 inch = 18.288mm (Tolerance +.0000 to minus 0.005) |
| Be | 0.4724 inch = 11.99896mm (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | R Seal |
| Load Ratings Dynamic | 2160 lbf |
| Load Ratings Static | 889 lbf |
