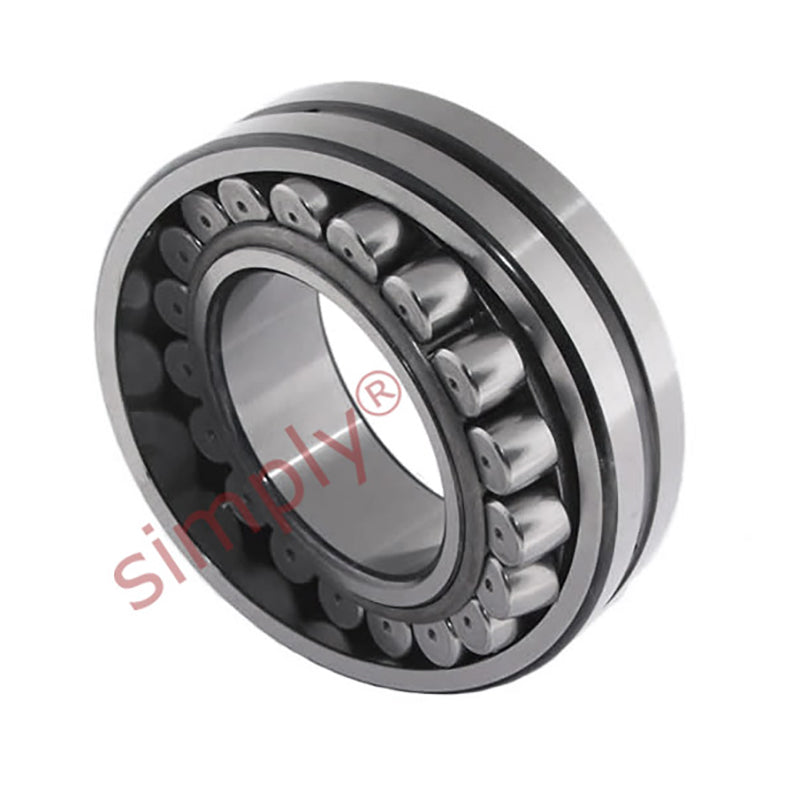

• SKF 21310EKC3 Spherical Roller Bearing with Taper Bore 50x110x27mm
1 1

SKU: 21310EK/C3-SKF

SKF 21310EKC3 Spherical Roller Bearing with Taper Bore 50x110x27mm

SKF 21310EKC3 Spherical Roller Bearing with Taper Bore 50x110x27mm
€174,68 ex VAT
€174,68 ex VAT
Sale Sold out

Equivalent to: 21310KC3

In stock

Price Break
3+ €132,75
4+ €125,29
9+ €123,80
19+ €122,31
29+ €120,82
39+ €119,33
49+ €111,87
59+ €110,38
249+ €108,88
499+ €107,39
999+ €104,41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
110mm
Width:
27mm
Clearance:
C3
Technical
--- Dimensions
d 50mm
D 110mm
B 27mm
D1 96.8mm
d2 71.6mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 61mm
Da max 99mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 156 kN
Static load Co 166 kN
Fatigue load limit Pu 18.6 kN
Reference speed 5600 rpm
Limiting speed 7500 rpm
Weight 1.35 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310+sleeve>H310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS310+sleeve>HS310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA310+sleeve>HA310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE310+sleeve>HE310</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX310+sleeve>AHX310</a>
