• SKF 21312EKC3 Spherical Roller Bearing with Taper Bore 60x130x31mm
1 1

SKU: 21312EK/C3-SKF

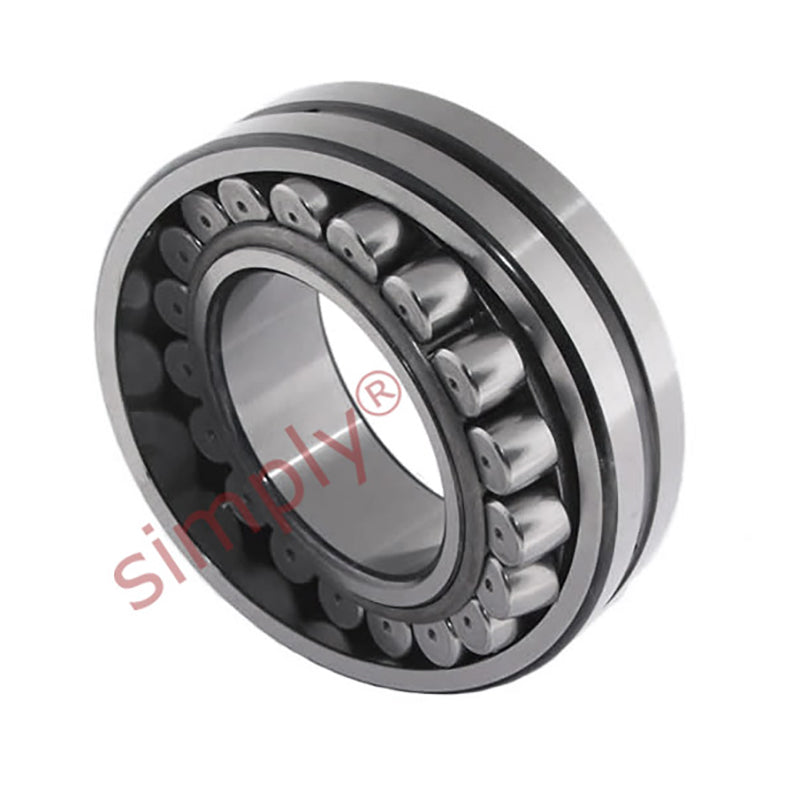

SKF 21312EKC3 Spherical Roller Bearing with Taper Bore 60x130x31mm

SKF 21312EKC3 Spherical Roller Bearing with Taper Bore 60x130x31mm
€184,53 ex VAT
€184,53 ex VAT
Sale Sold out

Equivalent to: 21312KC3

In stock

Price Break
3+ €140,24
4+ €132,36
9+ €130,78
19+ €129,21
29+ €127,63
39+ €126,06
49+ €118,18
59+ €116,60
249+ €115,03
499+ €113,45
999+ €110,30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
130mm
Width:
31mm
Clearance:
C3
Technical
--- Dimensions
d 60mm
D 130mm
B 31mm
D1 115mm
d2 87.8mm
r1r2 min 2.1mm
b 5.5mm
K 3mm
da min 72mm
Da max 118mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 212 kN
Static load Co 240 kN
Fatigue load limit Pu 26.5 kN
Reference speed 4800 rpm
Limiting speed 6300 rpm
Weight 2.1 kg
--- Factors
Calculation factor e 0.22
Calculation factor Y1 3
Calculation factor Y2 4.6
Calculation factor Y0 2.8
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H312+sleeve>H312</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS312+sleeve>HS312</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX312+sleeve>AHX312</a>
