SKU: 215-2ZNR-SKF

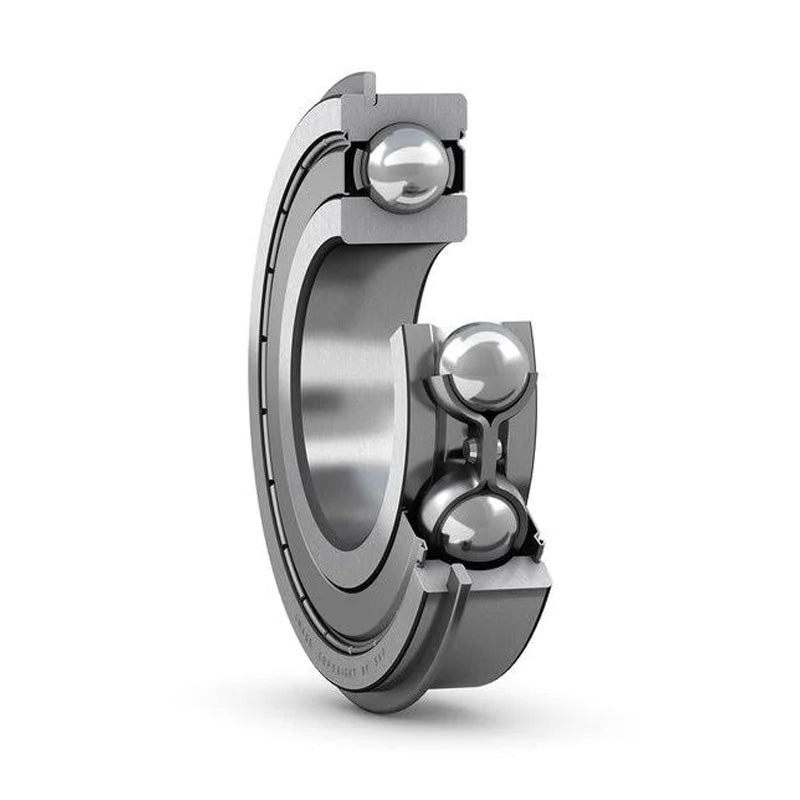

SKF 2152ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 75x130x25mm
SKF 2152ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 75x130x25mm
Out of stock
Description
Description
|
SKF Filling Slot Ball Bearings with Snap Ring: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. This option is supplied with snap ring groove and snap ring. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load C | 72.1 kN |
| Static load Co | 72 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.25 kg |
| Snap ring | SP130 |
| d1 | 92.1mm |
| D2 | 117mm |
| D3 | 125.22mm |
| D4 | 139.7mm |
| f | 2.82mm |
| b | 3.1mm |
| C | 4.06mm |
| ro max | 0.6mm |
| r1r2 min | 1.5mm |
| da min | 83mm |
| Da max | 122mm |
| Db min | 141mm |
| ba min | 3.5mm |
| Ca max | 6.88mm |
| ra max | 1.5mm |
