SKU: 2206-KSM
KSM 2206 Open Self Aligning Ball Bearing with Cylindrical Bore 30x62x20mm
- Regular price
- €22.55 ex VAT
- Sale price
- €22,55
- Regular price
-
In stock
Quantity Price Breaks
4
€20.07
9
€18.94
19
€18.72
29
€18.49
49
€18.27
99
€18.04
179
€16.91
249
€16.69
499
€16.46
699
€16.24
999
€15.79
SKU:
2206-KSM
KSM 2206 Open Self Aligning Ball Bearing with Cylindrical Bore 30x62x20mm
- Regular price
- €22.55 ex VAT
- Sale price
- €22,55
- Regular price
-
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |

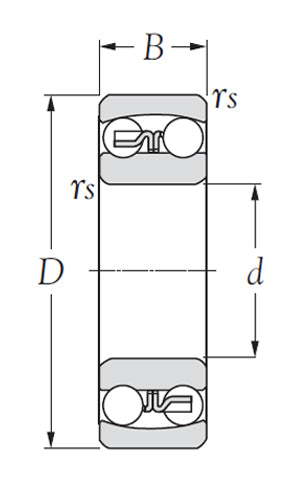

Technical
| --- | = | Bearing Dimensions |
| d | = | 30mm |
| D | = | 62mm |
| B | = | 20mm |
| r1r2 min | = | 1mm |
| --- | = | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | = | 15200 N |
| Basic Static Load Raiting Cor | = | 4500 N |
| Limiting Speed in Grease | = | 8600 rpm |
| Limiting Speed in Oil | = | 10000 rpm |
| Weight | = | 0.256 kg |
