SKU: 2213.K.MB

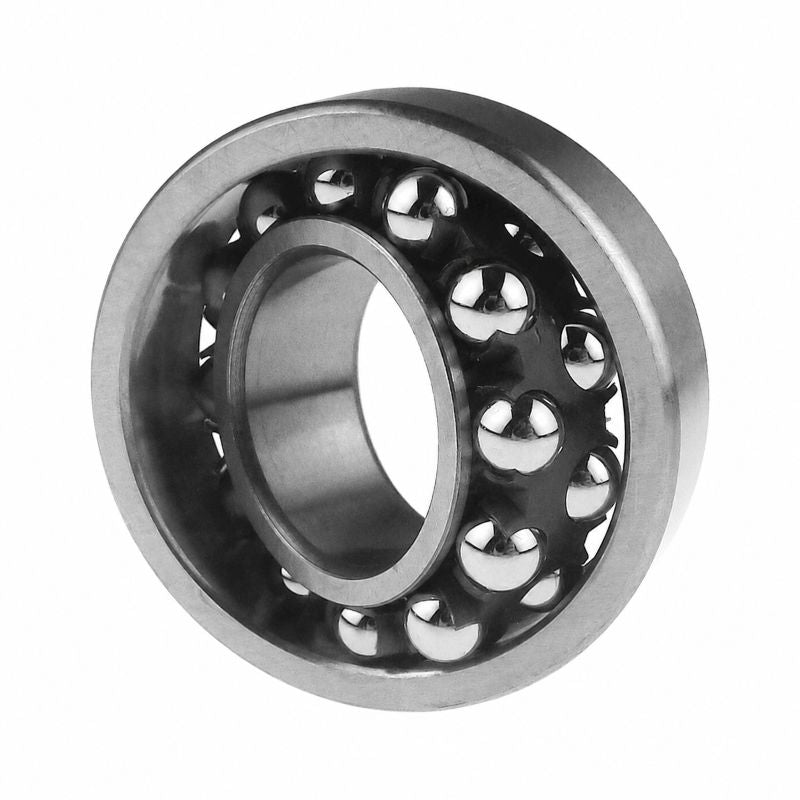

2213K Open Self Aligning Ball Bearing with Taper Bore 65x120x31mm

2213K Open Self Aligning Ball Bearing with Taper Bore 65x120x31mm
Regular price €88,54 ex VAT
Regular price Sale price €88,54 ex VAT
Sale Sold out

Equivalent to: 2213EK 2213K

In stock

Price Break
10+ €67,28
19+ €63,50
29+ €62,74
39+ €61,99
49+ €61,23
74+ €60,48
99+ €56,70
199+ €55,94
249+ €55,18
499+ €54,43
999+ €52,92
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 65mm
D 120mm
B 31mm
r1r2 min 1.5mm
--- Speeds, Loads and Weights
Dynamic Load 57kN
Static Load 20.1kN
Pu 0.9Kn
Reference Speed 6300rpm
Limiting Speed 7000rpm
Weight 1.46kg
--- Factors
e 0.23
Fa/Fr = e 2.8
Fa/Fr > e 4.3
Y0 2.9
--- Matching Adaptor Sleeves
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H313+sleeve>H313</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA313+sleeve>HA313</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE313+sleeve>HE313</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS313+sleeve>HS313</a>
--- Matching Withdrawal Sleeves
Withdrawal Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH313G+sleeve>AH313G</a>
