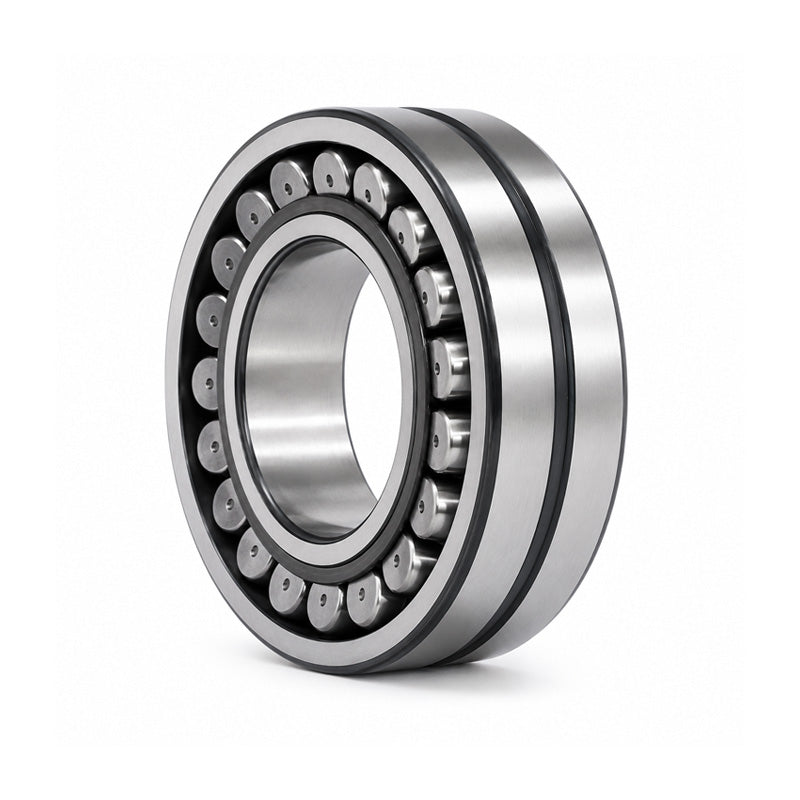

• SKF 22318EKC3 Spherical Roller Bearing with Taper Bore 90x190x64mm
1 1

SKU: 22318EK/C3-SKF

SKF 22318EKC3 Spherical Roller Bearing with Taper Bore 90x190x64mm

SKF 22318EKC3 Spherical Roller Bearing with Taper Bore 90x190x64mm
€432,53 ex VAT
€432,53 ex VAT
Sale Sold out

Equivalent to: 22318KC3

In stock

Price Break
3+ €328,70
4+ €310,23
9+ €306,54
19+ €302,85
29+ €299,15
39+ €295,46
49+ €276,99
59+ €273,30
249+ €269,61
499+ €265,91
999+ €258,53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
190mm
Width:
64mm
Clearance:
C3
Technical
--- Dimensions
d 90mm
D 190mm
B 64mm
D1 161mm
d2 113mm
r1r2 min 3mm
b 11.1mm
K 6mm
da min 104mm
Da max 176mm
ra max 2.5mm
--- Speeds, Loads and Weights
Dynamic load C 610 kN
Static load Co 695 kN
Fatigue load limit Pu 67 kN
Reference speed 2600 rpm
Limiting speed 3600 rpm
Weight 9.05 kg
--- Factors
Calculation factor e 0.33
Calculation factor Y1 2
Calculation factor Y2 3
Calculation factor Y0 2
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2318+sleeve>H2318</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2318+sleeve>HA2318</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2318+sleeve>HE2318</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2318+sleeve>AHX2318</a>
