SKU: 22319-E1-K-C3u-FAG

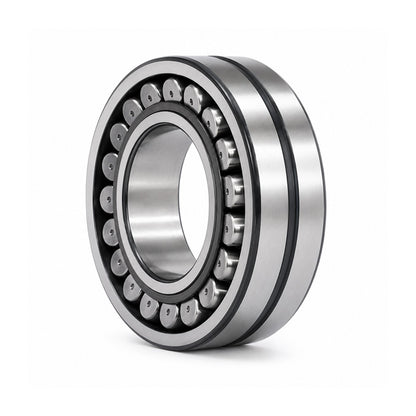

FAG 22319E1KC3 X-life Spherical Roller Bearing with AHX2319 Withdrawal Sleeve 90x200x67mm
FAG 22319E1KC3 X-life Spherical Roller Bearing with AHX2319 Withdrawal Sleeve 90x200x67mm
Regular price
€552,45
ex VAT
Regular price
Sale price
€552,45
ex VAT
In stock
Price Break
3+
€419,84
4+
€396,25
9+
€391,54
19+
€386,82
29+
€382,10
39+
€377,38
49+
€353,80
59+
€349,08
249+
€344,36
499+
€339,65
999+
€330,21
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 200mm
- Width:
- 67mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 90mm |
|---|---|
| d | 95mm |
| D | 200mm |
| B | 67mm |
| r min | 3mm |
| D1 | 171.2mm |
| d2 | 116mm |
| ds | 6.3mm |
| ns | 12.2mm |
| a | 4mm |
| b | 16mm |
| Thread d2G | M105X2 |
| l | 85mm |
| da min | 109mm |
| Da max | 186mm |
| ra max | 2.5mm |
| Dynamic load Cr | 670000 N |
| Static load C0r | 700000 N |
| e | 0.33 |
| Y1 | 2.03 |
| Y2 | 3.02 |
| Y0 | 1.98 |
| Fatigue load limit Cur | 60000 N |
| Limiting speed nG | 3000 rpm |
| Reference speed nB | 2800 rpm |
| Bearing weight | 9.46 kg |
| Withdrawal sleeve weight | 0.894 kg |
