SKU: 232/750CAKF/W33-SKF

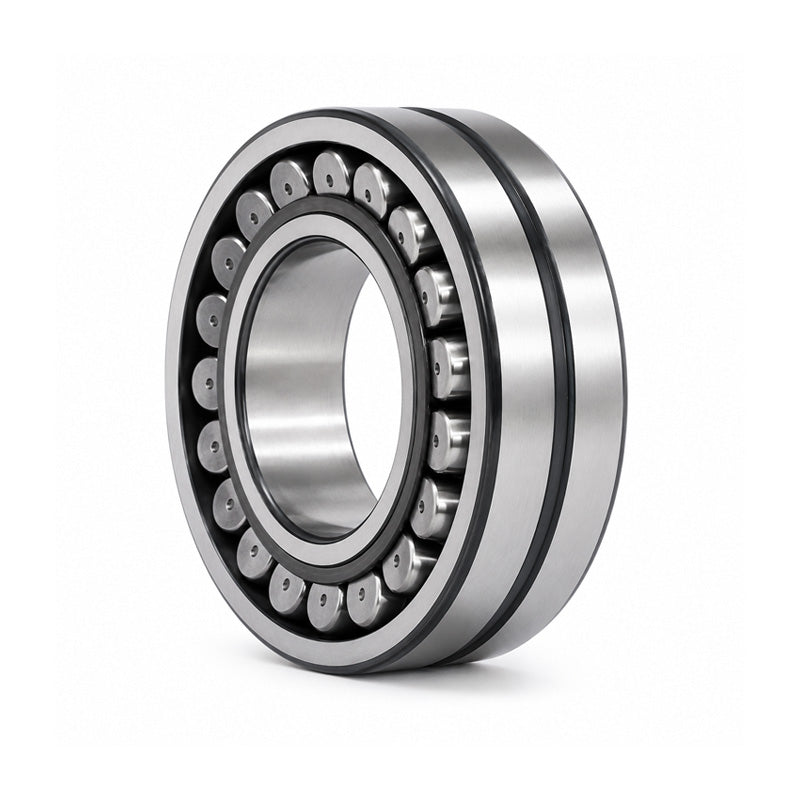

SKF 232750CAKFW33 Spherical Roller Bearing with Taper Bore with Brass Cage 750x1360x475mm

Name: SKF 232750CAKFW33 Spherical Roller Bearing with Taper Bore with Brass Cage 750x1360x475mm
Brand: SKF
SKU: 232/750CAKF/W33-SKF
Availability: OutOfStock

Equivalent to: 232/750K

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Brand / Quality:: SKF - High Quality
Inside Diameter:: 750mm
Outside Diameter:: 1360mm
Width:: 475mm
Clearance:: * Standard

Technical

---	Dimensions
d	750mm
D	1360mm
B	475mm
D1	1163mm
d2	938mm
r1r2 min	15mm
b	22.3mm
K	12mm
da min	808mm
Da max	1302mm
ra max	12mm
---	Speeds, Loads and Weights
Dynamic load C	18700 kN
Static load Co	36500 kN
Fatigue load limit Pu	2120 kN
Reference speed	190 rpm
Limiting speed	300 rpm
Weight	3050 kg
---	Factors
Calculation factor e	0.35
Calculation factor Y1	1.9
Calculation factor Y2	2.9
Calculation factor Y0	1.8
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=OH32750H+sleeve>OH32750H</a>
---	Matching Withdrawal Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AOH32/750+sleeve>AOH32/750</a>
