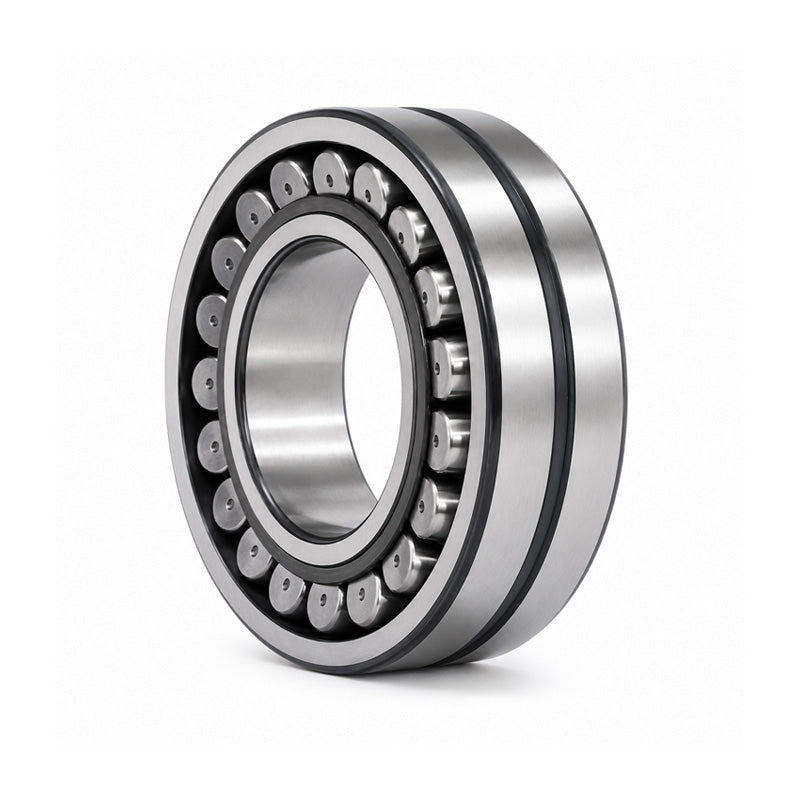

• SKF 23222CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 110x200x69.8mm
1 1

SKU: 23222CCK/W33-SKF

SKF 23222CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 110x200x69.8mm

SKF 23222CCKW33 Spherical Roller Bearing with Taper Bore with Steel Cage 110x200x69.8mm
€560,49 ex VAT
€560,49 ex VAT
Sale Sold out

Equivalent to: 23222K

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
110mm
Outside Diameter:
200mm
Width:
69.8mm
Clearance:
* Standard
Technical
--- Dimensions
d 110mm
D 200mm
B 69.8mm
D1 169mm
d2 130mm
r1r2 min 2.1mm
b 8.3mm
K 4.5mm
da min 122mm
Da max 188mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 600 kN
Static load Co 765 kN
Fatigue load limit Pu 76.5 kN
Reference speed 2200 rpm
Limiting speed 3200 rpm
Weight 9.85 kg
--- Factors
Calculation factor e 0.33
Calculation factor Y1 2
Calculation factor Y2 3
Calculation factor Y0 2
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2322+sleeve>H2322</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2322+sleeve>HE2322</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX3222G+sleeve>AHX3222G</a>
