SKU: 240145/240241XP-GAMET

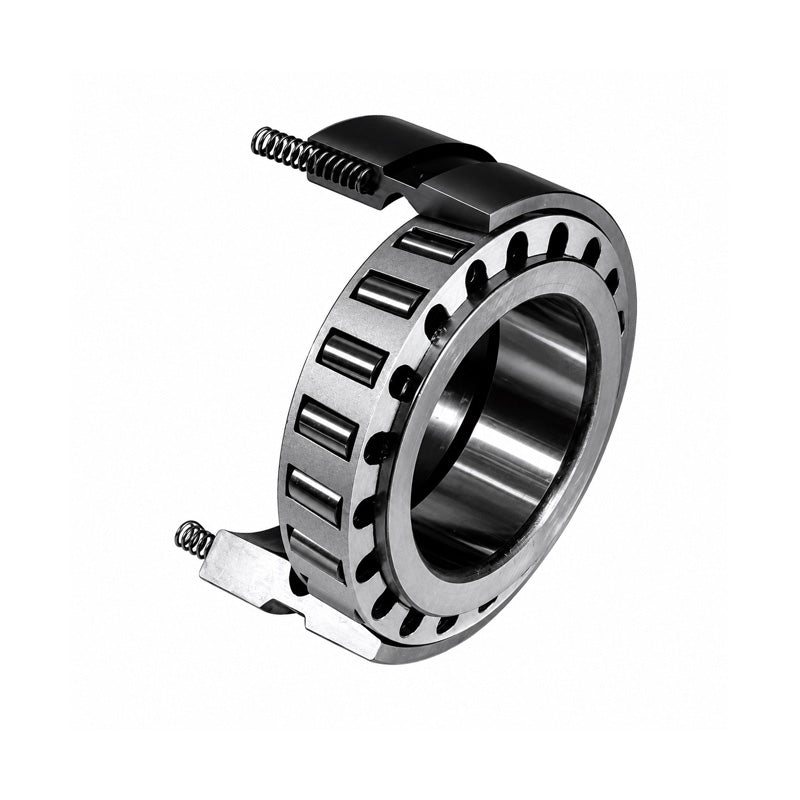

Gamet 240145/240241XP Super Precision Tapered Roller Bearing Integral Spring Carrier Cup Type 145x241.3x59mm - Allow 7-10 Days
Gamet 240145/240241XP Super Precision Tapered Roller Bearing Integral Spring Carrier Cup Type 145x241.3x59mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Tapered Roller Bearing Integral Spring Carrier Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, this single row bearing has an extended outer ring, housing and a number of springs. It is mounted in conjuction with either a single or double row bearing. As the outer race is free to slide in the housing, the spring force ensures that a constant bearing system preload is maintained despite thermal expansion due to varying temperature conditions. Benefits: Cost-effective, high quality bearing materials, constant pre-load. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 145mm
- Outside Diameter:
- 241.3mm
- Width:
- 59mm
Technical
Technical
| d | 145.000mm |
|---|---|
| D | 241.300mm |
| T | 115.00mm |
| C | 104.00mm |
| B | 59.00mm |
| F | 11.00mm |
| da | 170mm |
| L | 12mm |
| M | 185.00mm |
| P | 52.08 daN |
| Max permissible pre load | 1250 daN |
| Hole for springs diameter | 14.25mm |
| Hole for springs depth | 35.80mm |
| r | 1.00mm |
| R | 2.50mm |
| S | 56.00mm |
| Radial static stiffness | 171 daN/µ |
| Radial basic rating | 8385 daN |
| Axial basic rating | 4060 daN |
| Max speed | 2900 rpm |
| Weight | 17.150kg |
| Cone | 240145 |
| Cup | 240241XP |
