SKU: 24B-3-BB-NO58-RENOLD

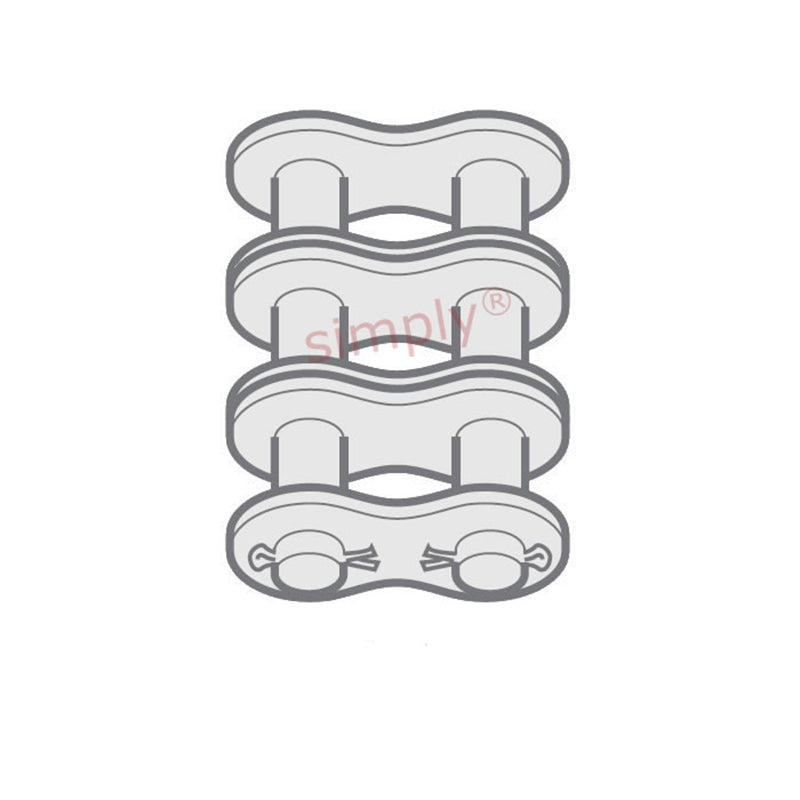

Renold Blue Box 24B-3-NO58 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €121.31 ex VAT
- Sale price
- €121,31
- Regular price
-
Not in stock
Quantity Price Breaks
2
€107.97
5
€101.90
10
€100.69
29
€99.47
49
€98.26
75
€97.05
100
€90.98
200
€89.77
250
€88.56
500
€87.34
1000
€84.92
SKU:
24B-3-BB-NO58-RENOLD
Renold Blue Box 24B-3-NO58 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €121.31 ex VAT
- Sale price
- €121,31
- Regular price
-
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.4mm |
| Plate Width Inner max (E) | = | 6.1mm |
| Plate Width Outer max (F) | = | 5.08mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H2) | = | 149.7mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| Transverse Pitch nom (K) | = | 48.36mm |
| ISO606 Tensile Strength min | = | 425000 N |
| Weight | = | 0.19kg/m |
