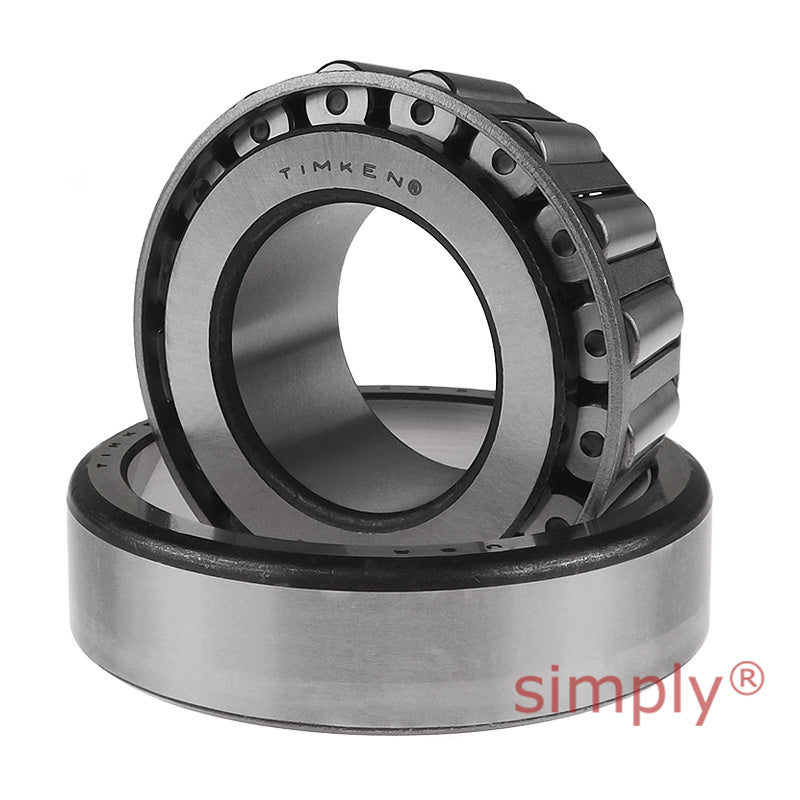

• Timken 2584/2523 TS Single-Row Taper Roller Bearing 1.2808x2.75x1 inch
1 1

SKU: 2584/2523-TIM

Timken 2584/2523 TS Single-Row Taper Roller Bearing 1.2808x2.75x1 inch

Timken 2584/2523 TS Single-Row Taper Roller Bearing 1.2808x2.75x1 inch
€1.704,79 ex VAT
€1.704,79 ex VAT
Sale Sold out

In stock

Price Break
10+ €1.295,56
20+ €1.222,78
30+ €1.208,22
40+ €1.193,66
50+ €1.179,11
75+ €1.164,55
100+ €1.091,77
200+ €1.077,21
250+ €1.062,65
500+ €1.048,09
1000+ €1.018,98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
32.53mm = 1.281 (1-9/32) inch
Outside Diameter:
69.85mm = 2.75 (2-3/4) inch
Width:
25.4mm = 1 inch
Technical
d 32.532mm = 1.2808 inch
D 69.85mm = 2.75 inch
T 25.4mm = 1 inch
Dynamic (1) C1 77500N
Factors (5) e 0.27
Factors (5) Y 2.19
Dynamic (2) C90 20100N
Dynamic (2) Ca90 9410N
Factors (5) K 2.14
Static C0 94400N
Bearing B 26.944mm = 1.0608 inch
Bearing C 19.05mm = 0.75 inch
Bearing a(3) -10.2mm = -0.4 inch
Shaft max shaft fillet radius R(4) 5mm = 0.2 inch
Shaft backing shoulder diameter da 38mm = 1.5 inch
Shaft backing shoulder diameter db 47.5mm = 1.87 inch
Housing backing shoulder diameter r(4) 1.3mm = 0.05 inch
Housing backing shoulder diameter Da 64mm = 2.52 inch
Housing backing shoulder diameter Db 61mm = 2.4 inch
Cage Aa 2.5mm = 0.1 inch
Cage Ab 0.8mm = 0.03 inch
G1 23.6
G2 9.63
Cg 0.0656
