SKU: 265SPC10-PD

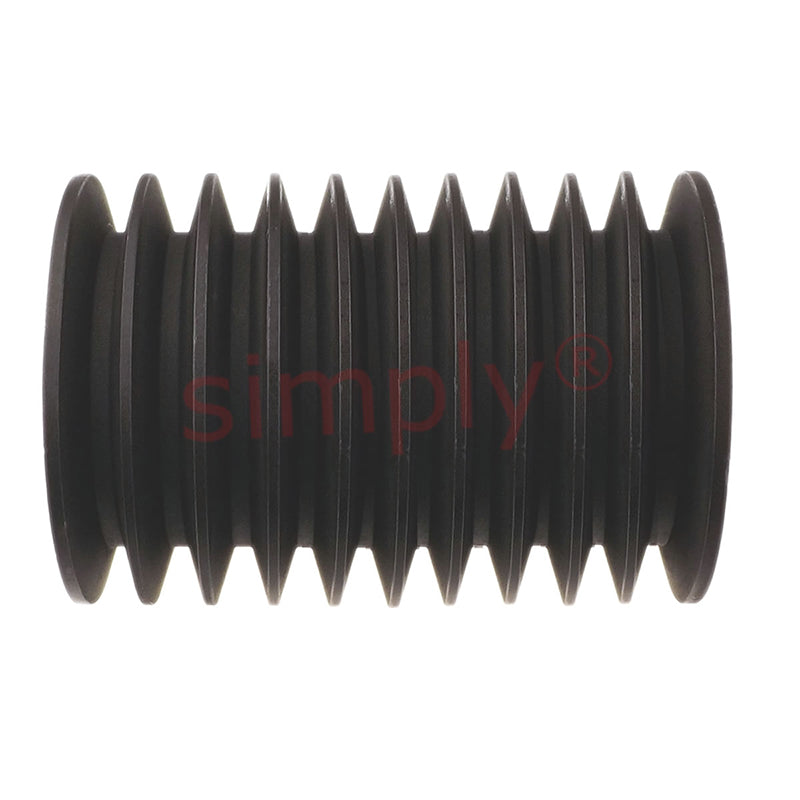

PowerDrive 265X10SPC 265mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 10 Grooves (Bush not Incl.) - Allow 2-3 Days
PowerDrive 265X10SPC 265mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 10 Grooves (Bush not Incl.) - Allow 2-3 Days
Out of stock
Description
Description
|
SPC Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184. Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better. Pulleys with a weight of 100kg and above are dynamically balanced (two planes). All pulleys with a weight less than 100kg are statically machine balanced (one plane). Suitability: Suitable for use with C section and SPC section V-Belts Benefits: Cost effective replacement |
- Brand / Quality:
- PowerDrive - High Quality
- Grooves:
- 10
- Outside Diameter:
- 274.5mm
- Pitch Diameter:
- 265mm
- Max Bore:
- 100mm
Technical
Technical
| Number of Grooves | 10 |
|---|---|
| Bush | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4040+tapered+locking+bush">4040 Click Here</a> |
| Pitch Diameter B | 265mm |
| Overall Outer Diameter C | 274.5mm |
| Max Bore A | 100mm |
| Overall Sheave Depth F | 263.5mm |
| Bush Seat Length G | 102mm |
| Inner Recess Length H | 80.8mm |
