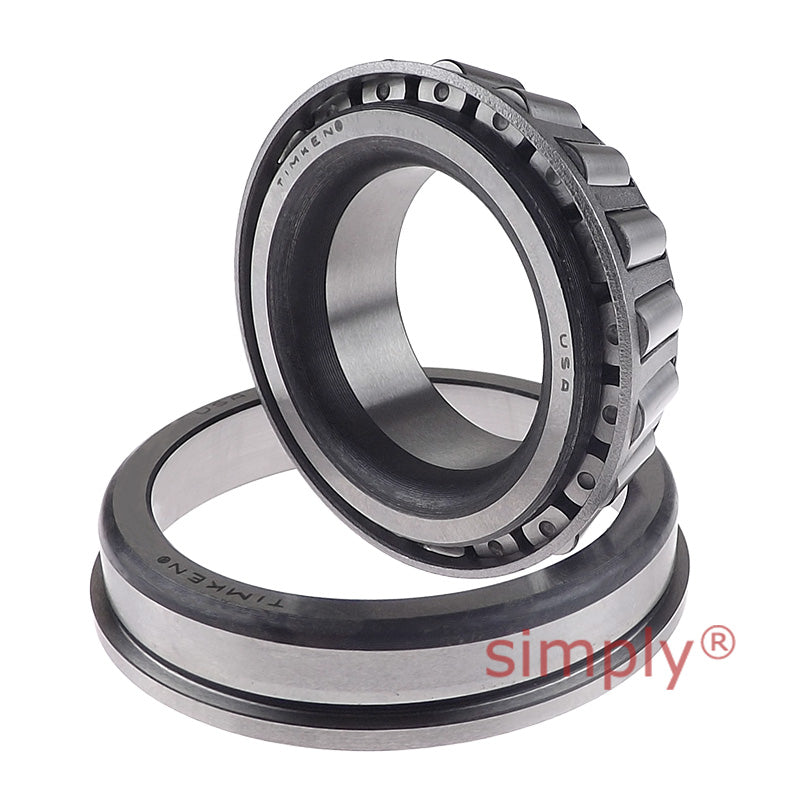

• Timken 28980/28921B TSF Single-Row Taper Roller Bearing 2.3613x3.937x1 inch
1 1

SKU: 28980/28921B-TIM

Timken 28980/28921B TSF Single-Row Taper Roller Bearing 2.3613x3.937x1 inch

Timken 28980/28921B TSF Single-Row Taper Roller Bearing 2.3613x3.937x1 inch
€383,00 ex VAT
€383,00 ex VAT
Sale Sold out

In stock

Price Break
10+ €291,06
20+ €274,71
30+ €271,44
40+ €268,17
50+ €264,90
75+ €261,63
100+ €245,28
200+ €242,01
250+ €238,74
500+ €235,47
1000+ €228,93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
59.98mm = 2.361 inch
Outside Diameter:
100mm = 3.937 (3-15/16) inch
Width:
25.4mm = 1 inch
Technical
d 59.977mm = 2.3613 inch
D 100mm = 3.937 inch
T1 9.525mm = 0.375 inch
Dynamic (1) C1 98200N
Factors (5) e 0.43
Factors (5) Y 1.41
Dynamic (2) C90 25500N
Dynamic (2) Ca90 18500N
Factors (5) K 1.37
Static Co 149000N
Bearing B 25.4mm = 1 inch
Bearing C 19.845mm = 0.7813 inch
Bearing a(3) -2.5mm = -0.1 inch
Bearing D1 103.962mm = 4.093 inch
Bearing C2 3.97mm = 0.1563 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 67mm = 2.64 inch
Shaft backing shoulder diameter db 73mm = 2.87 inch
Housing backing shoulder diameter Da 98mm = 3.86 inch
G1 60.1
G2 24.5
Cg 0.1032
