SKU: 28B-1-SD-NO4-RENOLD
Renold SD 28B-1-NO4 BS Simplex Chain Inner Link 1-3/4 inch Pitch
- Regular price
- €20.90 ex VAT
- Sale price
- €20,90
- Regular price
-
Not in stock
Quantity Price Breaks
2
€18.60
5
€17.56
10
€17.35
29
€17.14
49
€16.93
75
€16.72
100
€15.68
200
€15.47
250
€15.26
500
€15.05
1000
€14.63
SKU:
28B-1-SD-NO4-RENOLD
Renold SD 28B-1-NO4 BS Simplex Chain Inner Link 1-3/4 inch Pitch
- Regular price
- €20.90 ex VAT
- Sale price
- €20,90
- Regular price
-
Description

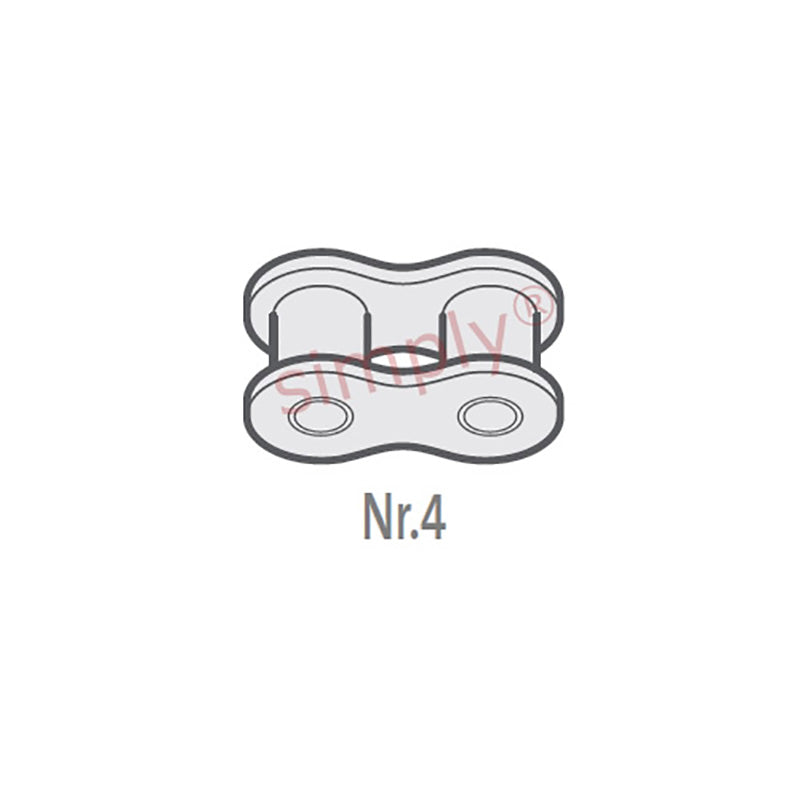

| Renold No. 4 European (BS) Simplex Connecting Link: These are complete assemblies for use with all sizes and types of chain. The unit consists of two inner plates pressed on to the bushes which carry the rollers. (Inner links for use with bush chains have no rollers). |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 36.9mm |
| Plate Width Inner max (E) | = | 7.4mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H1) | = | 64.8mm |
| Connecting Link Extension max (J) | = | 4.7mm |
| ISO606 Tensile Strength min | = | 200000 N |
| Weight | = | 0.003kg/m |
