SKU: 28B-2-BB-NO12-RENOLD
Renold Blue Box 28B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- €225.23 ex VAT
- Sale price
- €225,23
- Regular price
-
Not in stock
Quantity Price Breaks
2
€200.45
5
€189.19
10
€186.94
29
€184.69
49
€182.44
75
€180.18
100
€168.92
200
€166.67
250
€164.42
500
€162.17
1000
€157.66
SKU:
28B-2-BB-NO12-RENOLD
Renold Blue Box 28B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- €225.23 ex VAT
- Sale price
- €225,23
- Regular price
-
Description

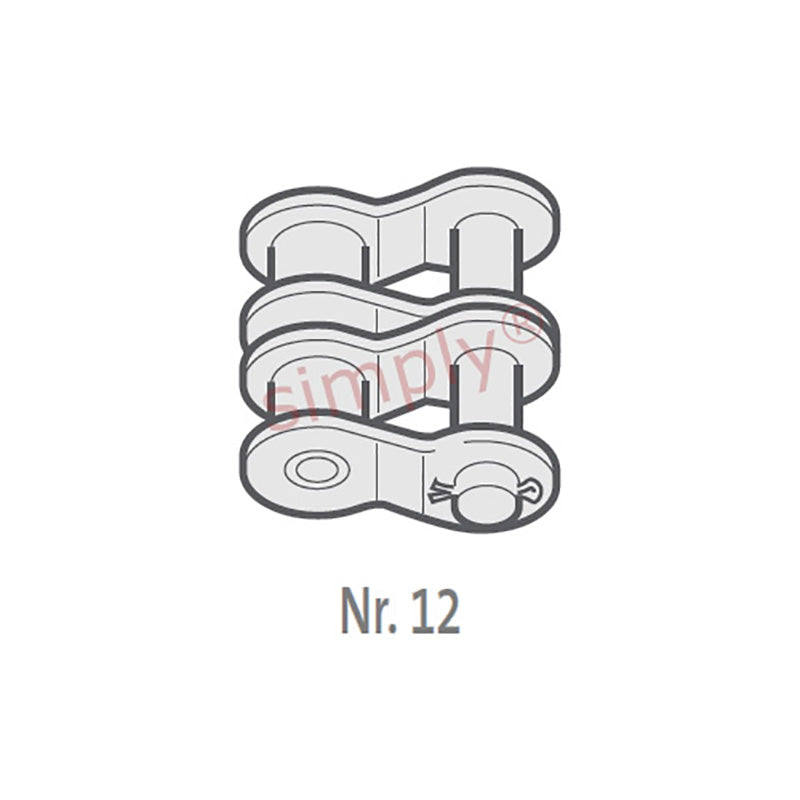

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 37.08mm |
| Plate Width Inner max (E) | = | 7.62mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H1) | = | 123.7mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| ISO606 Tensile Strength min | = | 360000 N |
| Weight | = | 0.27kg/m |
