SKU: 2921060EF-SKF

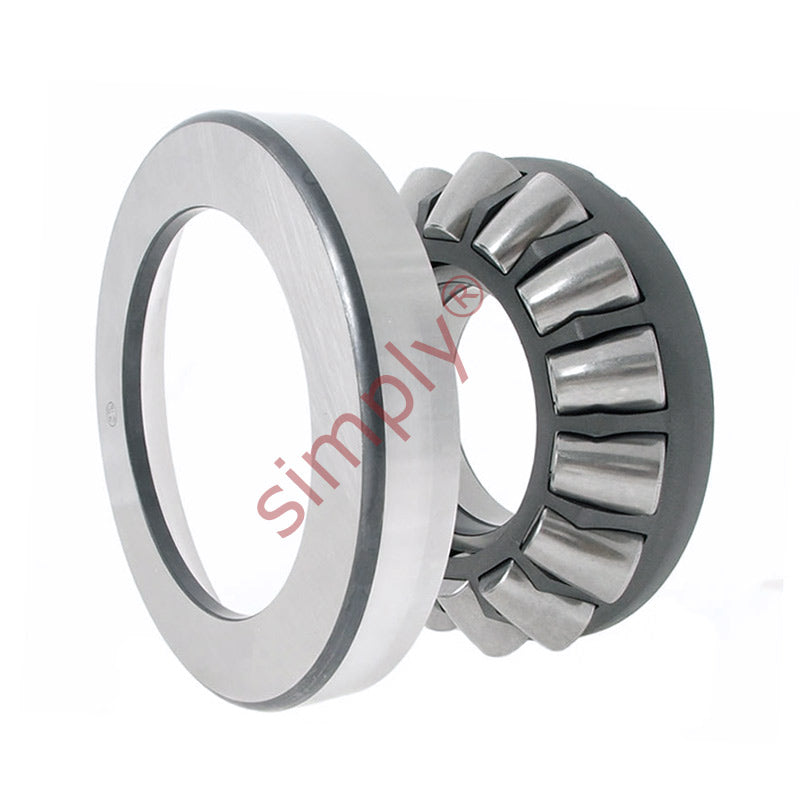

SKF 2921060EF Spherical Roller Thrust Bearing 1060x1400x206mm

Name: SKF 2921060EF Spherical Roller Thrust Bearing 1060x1400x206mm
Brand: SKF
SKU: 2921060EF-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 1060mm
Outside Diameter:: 1400mm
Width:: 206mm

Technical

d	1060mm
D	1400mm
H	206mm
Dynamic load C	10500 kN
Static load Co	58500 kN
Fatigue load limit Pu	3750 kN
Minimum load factor A	330
Reference speed	220 rpm
Limiting speed	360 rpm
Weight	860 kg
d1	1325mm
D1	1211mm
B	66mm
B1	199mm
C	100mm
s	566mm
r1r2 min	9.5mm
da min	1225mm
Da max	1290mm
ra max	8mm
