SKU: 292600EM-SKF

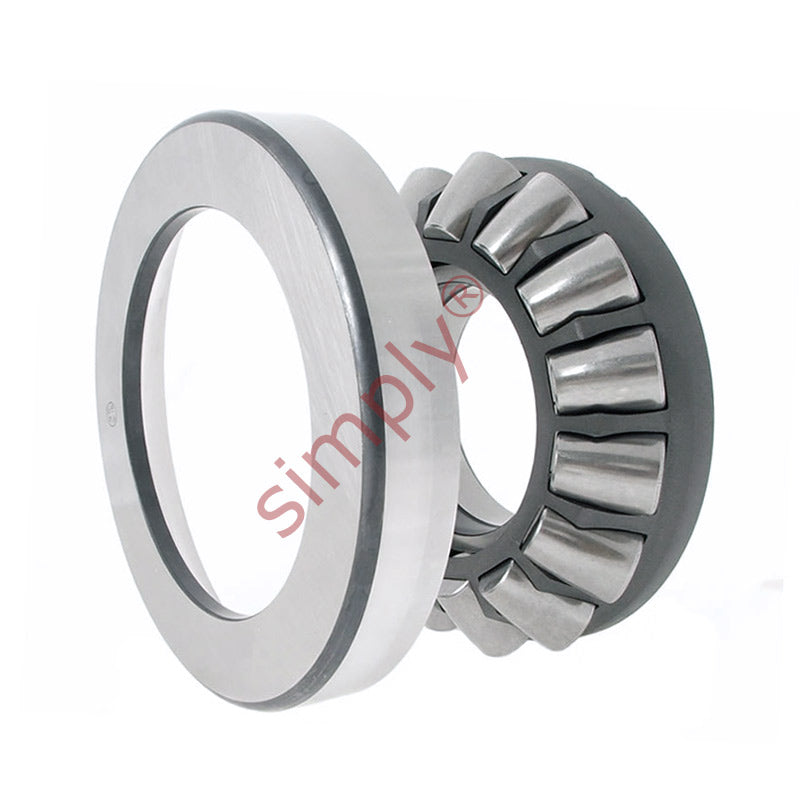

SKF 292600EM Spherical Roller Thrust Bearing 600x800x122mm

Name: SKF 292600EM Spherical Roller Thrust Bearing 600x800x122mm
Brand: SKF
SKU: 292600EM-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 600mm
Outside Diameter:: 800mm
Width:: 122mm

Technical

d	600mm
D	800mm
H	122mm
Dynamic load C	3740 kN
Static load Co	18600 kN
Fatigue load limit Pu	1460 kN
Minimum load factor A	33
Reference speed	450 rpm
Limiting speed	700 rpm
Weight	170 kg
d1	760mm
D1	688mm
B	39mm
B1	117mm
C	60mm
s	321mm
r1r2 min	5mm
da min	700mm
Da max	735mm
ra max	4mm
