SKU: 29360E-SKF

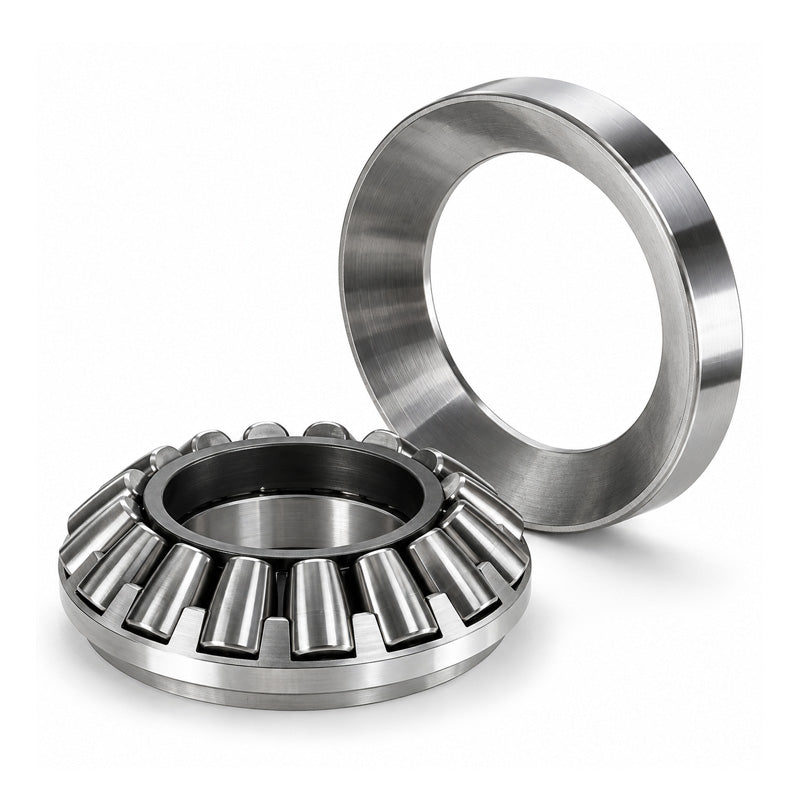

SKF 29360E Spherical Roller Thrust Bearing 300x480x109mm

Name: SKF 29360E Spherical Roller Thrust Bearing 300x480x109mm
Brand: SKF
SKU: 29360E-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 300mm
Outside Diameter:: 480mm
Width:: 109mm

Technical

d	300mm
D	480mm
H	109mm
Dynamic load C	3100 kN
Static load Co	10600 kN
Fatigue load limit Pu	930 kN
Minimum load factor A	11
Reference speed	750 rpm
Limiting speed	1200 rpm
Weight	75 kg
d1	434.1mm
D1	372mm
B	70mm
B1	98.9mm
C	51mm
s	168mm
r1r2 min	5mm
da min	385mm
db1 max	313mm
db2 max	329mm
Da max	423mm
ra max	4mm
