SKU: 294670EM-SKF

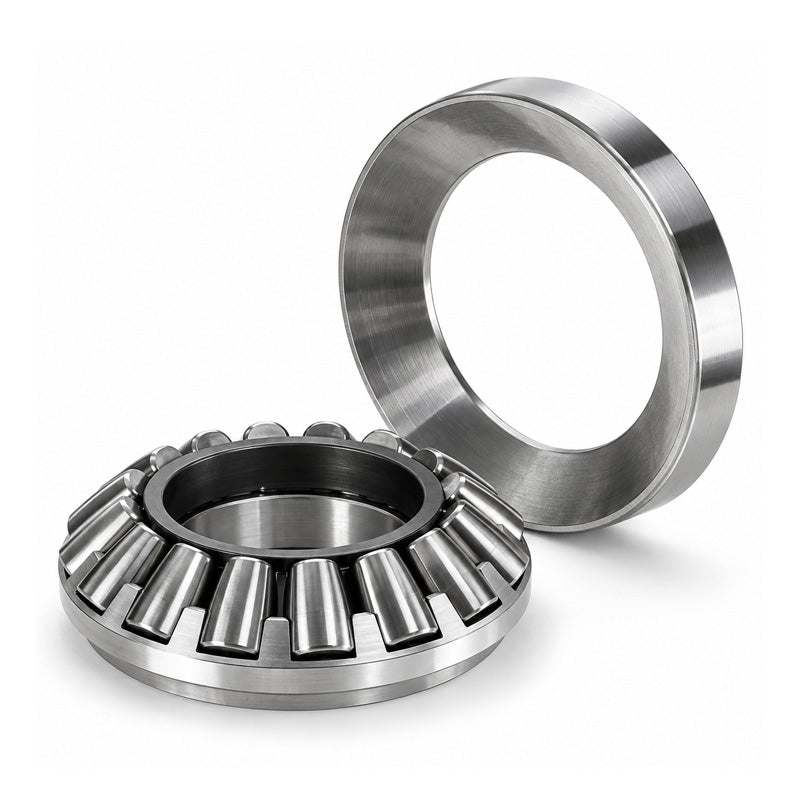

SKF 294670EM Spherical Roller Thrust Bearing 670x1150x290mm

Name: SKF 294670EM Spherical Roller Thrust Bearing 670x1150x290mm
Brand: SKF
SKU: 294670EM-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 670mm
Outside Diameter:: 1150mm
Width:: 290mm

Technical

d	670mm
D	1150mm
H	290mm
Dynamic load C	15400 kN
Static load Co	68000 kN
Fatigue load limit Pu	4500 kN
Minimum load factor A	440
Reference speed	240 rpm
Limiting speed	450 rpm
Weight	1210 kg
d1	1045mm
D1	864mm
B	110mm
B1	280mm
C	141mm
s	387mm
r1r2 min	15mm
da min	905mm
Da max	1000mm
ra max	12mm
