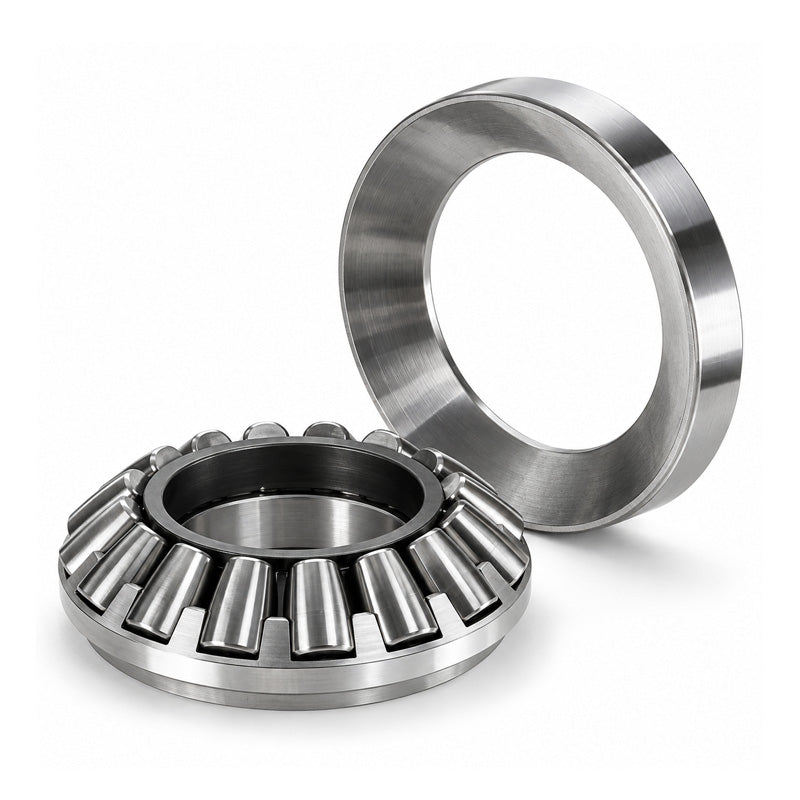

SKF 29488EM Spherical Roller Thrust Bearing 440x780x206mm

Name: SKF 29488EM Spherical Roller Thrust Bearing 440x780x206mm
Brand: SKF
SKU: 29488EM-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 440mm
Outside Diameter:: 780mm
Width:: 206mm

Technical

d	440mm
D	780mm
H	206mm
Dynamic load C	7820 kN
Static load Co	32000 kN
Fatigue load limit Pu	2320 kN
Minimum load factor A	87
Reference speed	380 rpm
Limiting speed	750 rpm
Weight	410 kg
d1	710mm
D1	577mm
B	77mm
B1	199mm
C	101mm
s	257mm
r1r2 min	9.5mm
da min	605mm
Da max	675mm
ra max	8mm
