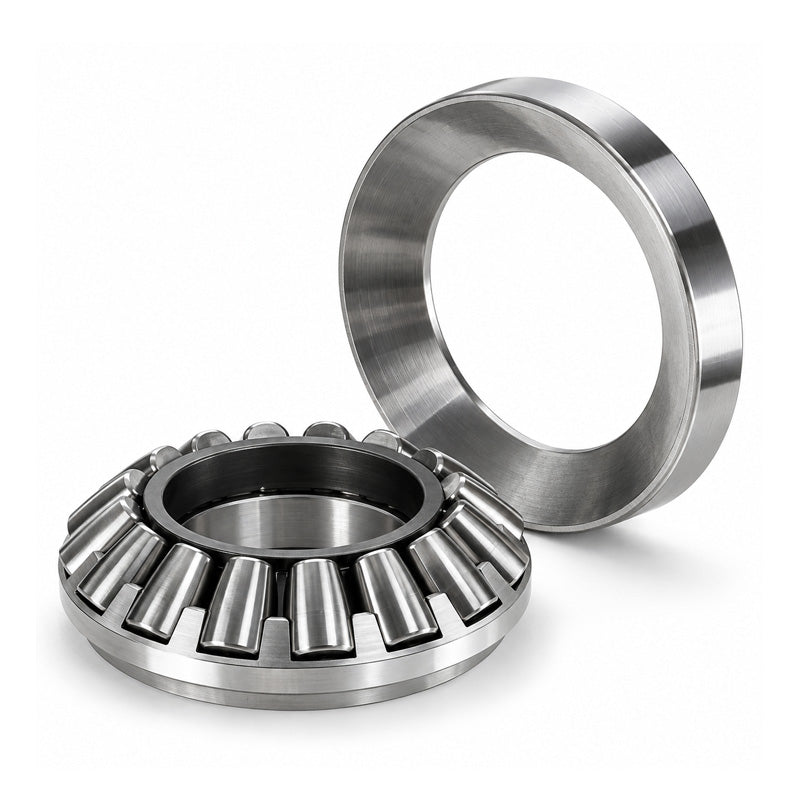

SKF 29496EM Spherical Roller Thrust Bearing 480x850x224mm

Name: SKF 29496EM Spherical Roller Thrust Bearing 480x850x224mm
Brand: SKF
SKU: 29496EM-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 480mm
Outside Diameter:: 850mm
Width:: 224mm

Technical

d	480mm
D	850mm
H	224mm
Dynamic load C	9550 kN
Static load Co	39000 kN
Fatigue load limit Pu	2800 kN
Minimum load factor A	140
Reference speed	340 rpm
Limiting speed	670 rpm
Weight	550 kg
d1	770mm
D1	625mm
B	88mm
B1	216mm
C	108mm
s	280mm
r1r2 min	9.5mm
da min	660mm
Da max	735mm
ra max	8mm
