SKU: 305-Z-SKF

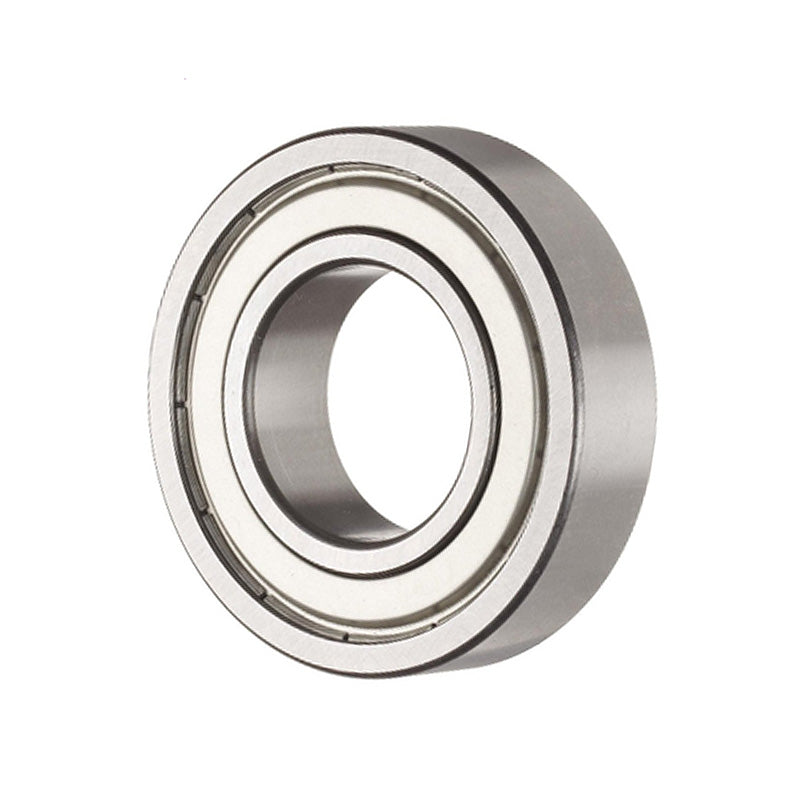

SKF 305Z Metal Shielded Filling Slot Ball Bearing 25x62x17mm
SKF 305Z Metal Shielded Filling Slot Ball Bearing 25x62x17mm
Out of stock
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Dynamic load C | 22.9 kN |
| Static load Co | 15.6 kN |
| Fatigue load limit Pu | 0.67 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.24 kg |
| d1 | 32.8mm |
| D2 | 52.7mm |
| r1r2 min | 1.1mm |
| da min | 31.5mm |
| Da max | 55.5mm |
| ra max | 1mm |
