SKU: 305800C-2Z-SKF

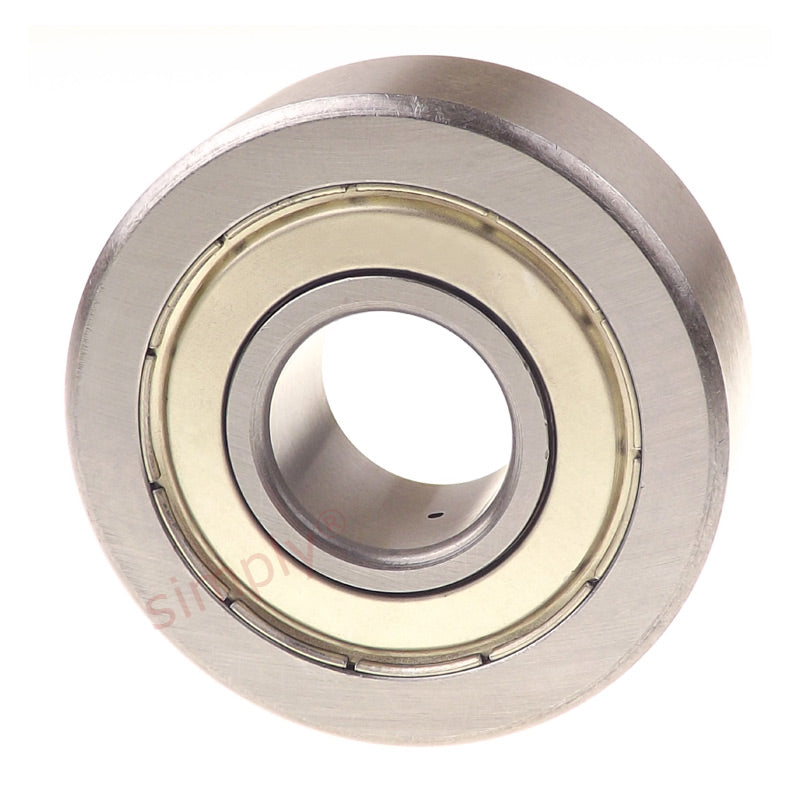

SKF 305800C2Z Double Row Cam Roller Bearing with Crowned Running Surface 10x32x14mm
- Regular price
- €53.24 ex VAT
- Sale price
- €53,24
- Regular price
-
In stock
Quantity Price Breaks
10
€47.38
19
€44.72
29
€44.19
39
€43.66
49
€43.12
74
€42.59
99
€39.93
199
€39.40
249
€38.87
499
€38.33
999
€37.27
SKU:
305800C-2Z-SKF
SKF 305800C2Z Double Row Cam Roller Bearing with Crowned Running Surface 10x32x14mm
- Regular price
- €53.24 ex VAT
- Sale price
- €53,24
- Regular price
-
Description
|
SKF Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. Benefits: Tolerate high loads, shock loads, misalignment when running in tracks |
Technical
| d | = | 10mm |
| D | = | 32mm |
| B | = | 14mm |
| d1 | = | 17.7mm |
| D1 | = | 25mm |
| r1r2 min | = | 0.6mm |
| a | = | 15mm |
| Limiting speed | = | 11000 rpm |
| Mass | = | 0.062 kg |
| Dynamic load C | = | 7.15 kN |
| Static load Co | = | 3.8 kN |
| Fatigue load limit Pu | = | 0.16 kN |
| Max radial load | = | 4.4 kN |
| Max static load | = | 6.3 kN |
