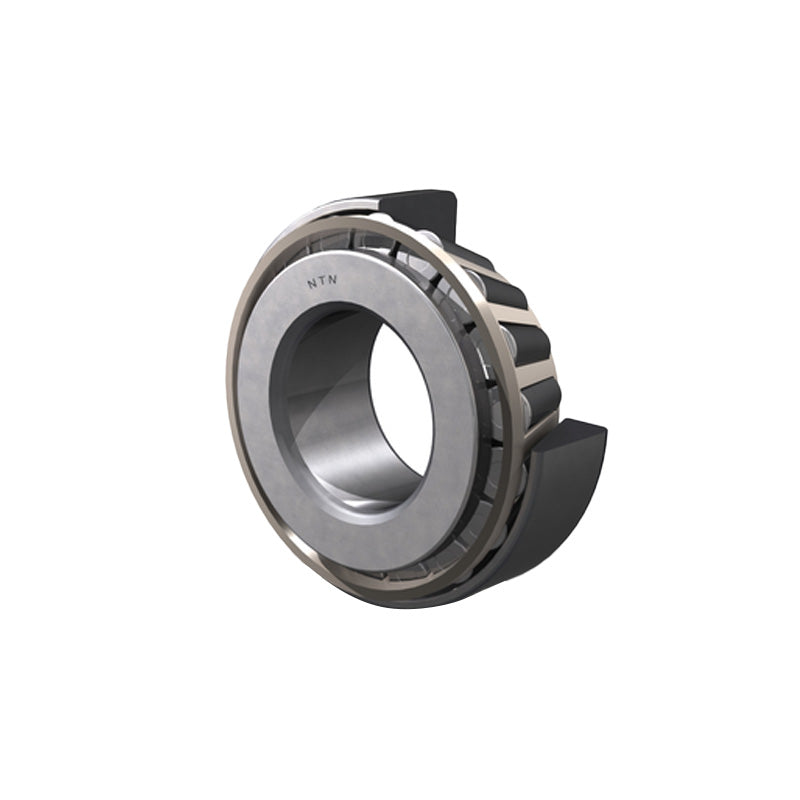

NTN 32038XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x290x64mm

NTN 32038XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x290x64mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 190mm
D 290mm
T 64mm
B 64mm
C 48mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 840kN
Static load C<sub>or</sub> 1210kN
Fatigue Load limit C<sub>u</sub> 113kN
Allowable Speed in grease 1100rpm
Allowable Speed in oil 1600rpm
--- Abutment dimensions
ISO Dimension series 4FD
d<sub>a</sub> min 204mm
d<sub>b</sub> max 206.5mm
D<sub>a</sub> max 278mm
D<sub>a</sub> min 252mm
D<sub>b</sub> min 281mm
S<sub>a</sub> min 10mm
S<sub>b</sub> min 16mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2mm
Load center a 62.5mm
Constant e 0.44mm
Y<sub>2</sub> 1.36mm
Y<sub>0</sub> 0.75mm
Weight 15kg
