SKU: 32311BRJ2/QCL7C-SKF

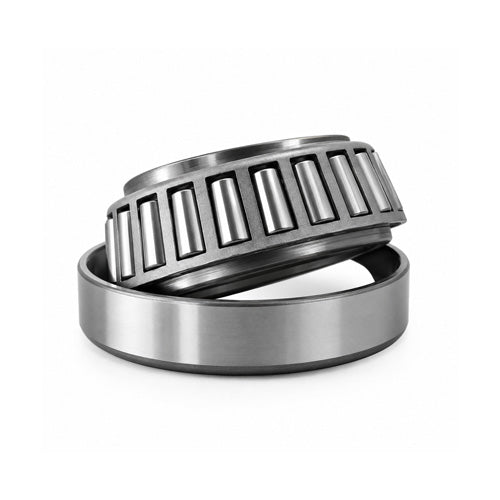

SKF 32311BRJ2QCL7C Metric Taper Roller Bearing with Flanged Outer 55x120x45.5mm
SKF 32311BRJ2QCL7C Metric Taper Roller Bearing with Flanged Outer 55x120x45.5mm
Out of stock
Share this product
Description
Description
|
SKF Taper Roller Bearings with Flanged Outer Ring: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 45.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| T | 45.5mm |
| Dynamic load | 216 kN |
| Static load | 260 kN |
| Fatigue load limit Pu | 30 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.5 kg |
| d1 | 90.5mm |
| D1 | 127mm |
| B | 43mm |
| C | 35mm |
| C1 | 8mm |
| r1r2 min | 2.5mm |
| r3r4 min | 2mm |
| a | 36mm |
| da max | 67mm |
| db min | 65mm |
| ra max | 2mm |
| Calculation Factor e | 0.54 |
| Calculation Factor Y | 1.1 |
| Calculation Factor Y0 | 0.6 |
