SKU: 32912-MB

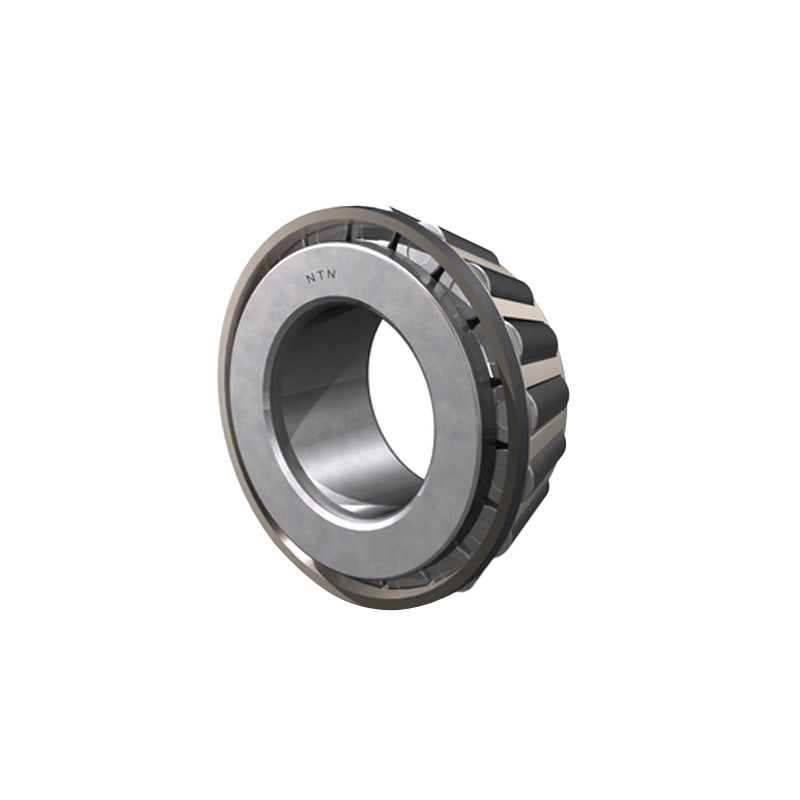

32912 Major Brand Metric Taper Roller Bearing 60x85x17mm
32912 Major Brand Metric Taper Roller Bearing 60x85x17mm
Regular price
€93,32
ex VAT
Regular price
Sale price
€93,32
ex VAT
Equivalent to: 32912XA 32912JR 32912J
In stock
Price Break
3+
€70,92
5+
€66,93
9+
€66,14
19+
€65,34
49+
€64,54
74+
€63,75
99+
€59,76
199+
€58,97
249+
€58,17
499+
€57,37
999+
€55,78
Quantity
Couldn't load pickup availability
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 17mm
- Seals / Shields:
- None
Technical
Technical
| Inner Diameter d | 60mm |
|---|---|
| Outer Diameter D | 85mm |
| Inner Ring width B | 17mm |
| Outer Ring Width C | 14mm |
| Total width T | 17mm |
| Maxium Shaft Link Radius r<sub>as</sub>max | 1mm |
| Maxium Housing Link Radius r<sub>1as</sub>max | 1mm |
| Weight | 0.295kg |
| Dynamic Load Capacity C | 51 kN |
| Static Load capacity C0 | 83 kN |
| Limit Speed with Grease LUB | 4000 rpm |
| Limit Speed with Oil LUB | 5300 rpm |
