SKU: 32B-3-SD-NO12-RENOLD
Renold SD 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €145.42 ex VAT
- Sale price
- €145,42
- Regular price
-
Not in stock
Quantity Price Breaks
2
€129.42
5
€122.15
10
€120.70
29
€119.24
49
€117.79
75
€116.34
100
€109.07
200
€107.61
250
€106.16
500
€104.70
1000
€101.79
SKU:
32B-3-SD-NO12-RENOLD
Renold SD 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €145.42 ex VAT
- Sale price
- €145,42
- Regular price
-
Description

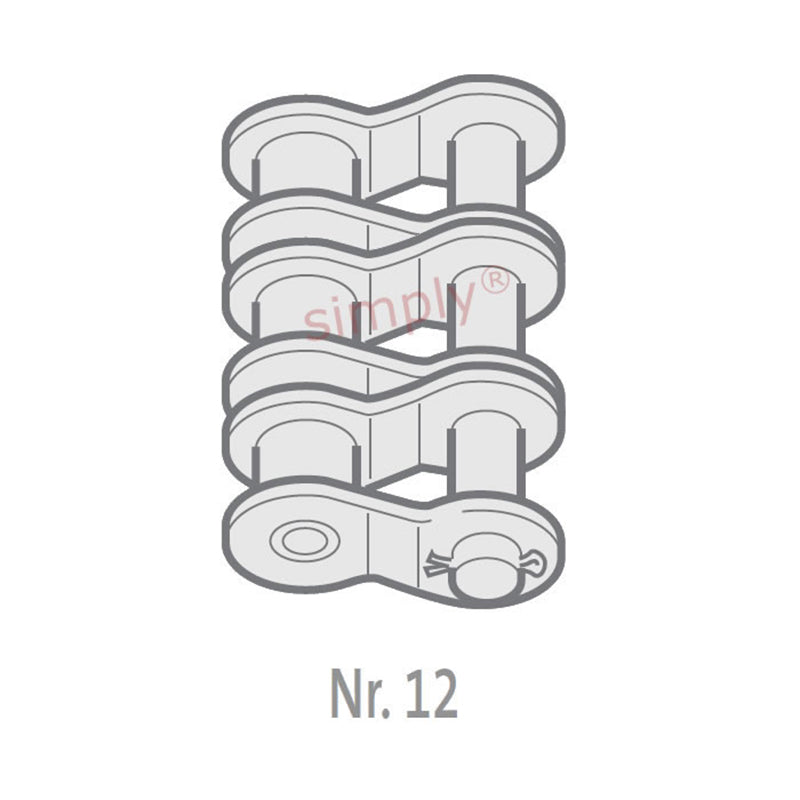

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 29.21mm |
| Plate Height max (D) | = | 42.1mm |
| Plate Width Inner max (E) | = | 7.1mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 17.81mm |
| Pin Length max (H1) | = | 179.4mm |
| Connecting Link Extension max (J) | = | 14.4mm |
| ISO606 Tensile Strength min | = | 725000 N |
| Weight | = | 0.5kg/m |
