SKU: 3307-2RS-EU

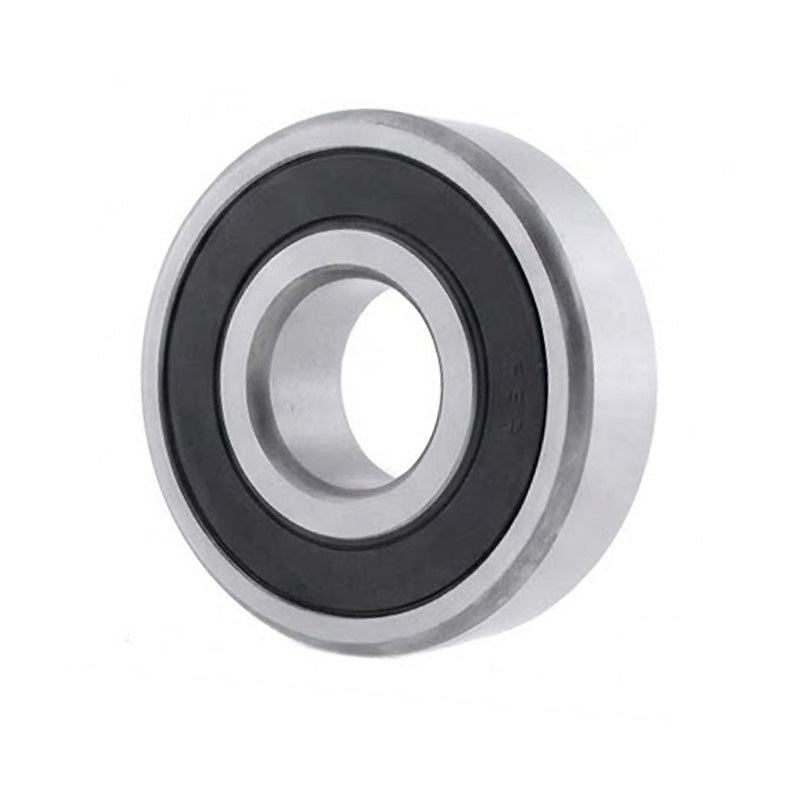

33072RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 35x80x34.9mm
33072RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 35x80x34.9mm
Regular price
€47,03
ex VAT
Regular price
Sale price
€47,03
ex VAT
In stock
Price Break
10+
€35,74
19+
€33,73
29+
€33,33
39+
€32,93
49+
€32,53
74+
€32,13
99+
€30,12
199+
€29,72
249+
€29,32
499+
€28,91
999+
€28,11
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 34.9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 34.9mm |
| Dynamic load C | 52 kN |
| Static load Co | 35.5 kN |
| Fatigue load limit Pu | 1.5 kN |
| Reference speed | 6000 rpm |
| Weight | 0.73 kg |
| d1 | 44.6mm |
| D1 | 70.5mm |
| r1r2 min | 1.5mm |
| a | 47mm |
| da min | 44mm |
| da max | 44.5mm |
| Da max | 71mm |
| ra max | 1.5mm |
