SKU: 3490/3423D/X1S3490-TIM

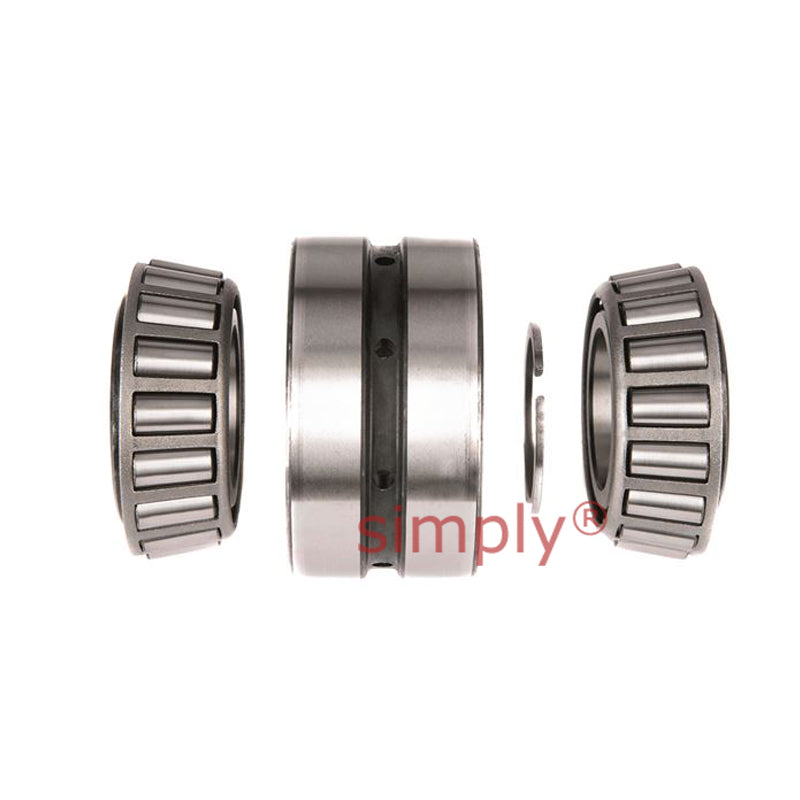

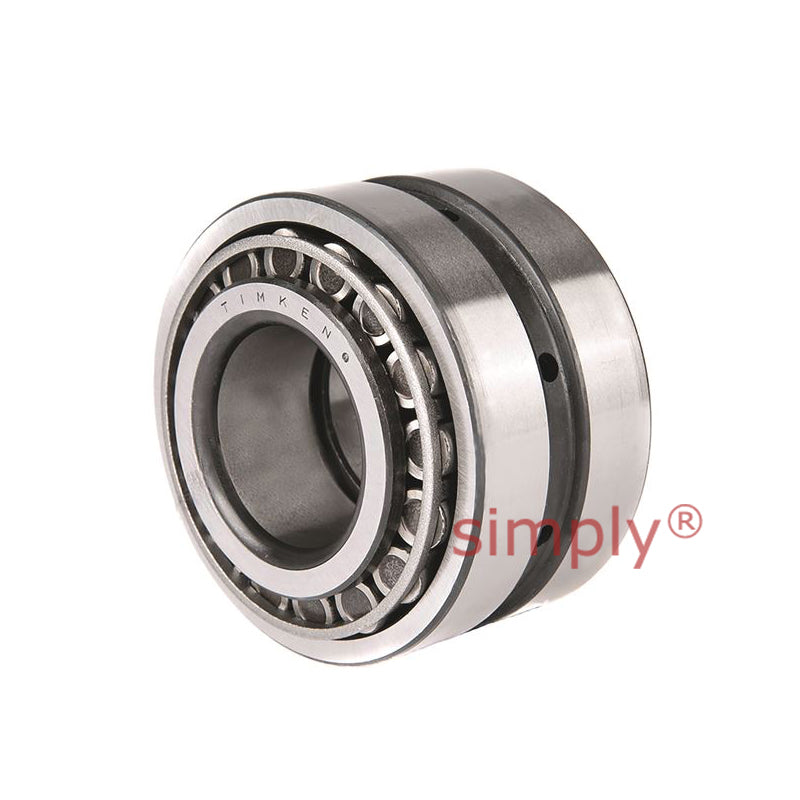

Timken 3490/3423D/X1S3490 TDO Double Outer Race Taper Roller Bearing 1.5x3.25x2.6251x2.1875 inch
Timken 3490/3423D/X1S3490 TDO Double Outer Race Taper Roller Bearing 1.5x3.25x2.6251x2.1875 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 38.10mm = 1.5 inch
- Outside Diameter:
- 82.55mm = 3.25 inch
- Width:
- 66.68mm = 2.6251 inch
Technical
Technical
| d | 38.1mm = 1.5 inch |
|---|---|
| D | 82.55mm = 3.25 inch |
| T | 66.678mm = 2.6251 inch |
| C | 55.562mm = 2.1875 inch |
| Dynamic (1) C1 | 169000N |
| Factors (5) e | 0.37 |
| Factors (5) Y1 | 1.85 |
| Factors (5) Y2 | 2.75 |
| Dynamic (2) C90 | 25100N |
| Dynamic (2) Ca90 | 15700N |
| Dynamic (2) C90(2) | 43700N |
| Factors (5) K | 1.6 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 52mm = 2.05 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 75mm = 2.95 inch |
| G1 | 29.9 |
| G2 | 11.2 |
| Cg | 0.0781 |
