SKU: 35-1-NO26-MB
Branded 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €3.88 ex VAT
- Sale price
- €3,88
- Regular price
-
In stock
Quantity Price Breaks
2
€3.45
5
€3.26
10
€3.22
29
€3.18
49
€3.14
75
€3.10
100
€2.91
200
€2.87
250
€2.83
500
€2.79
1000
€2.72
SKU:
35-1-NO26-MB
Branded 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €3.88 ex VAT
- Sale price
- €3,88
- Regular price
-
Description
Branded CL / No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Technical

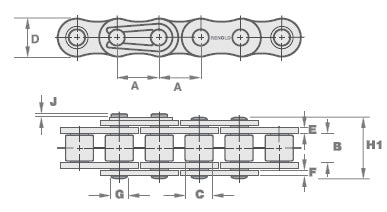

| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.77mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.95mm |
| Plate Width Inner max (E) | = | 1.2mm |
| Plate Width Outer max (F) | = | 1.2mm |
| Pin Diameter max (G) | = | 3.58mm |
| Pin Length max (H1) | = | 12.15mm |
| Connecting Link Extension max (J) | = | 0.949999999999999mm |
| ISO606 Tensile Strength min | = | 7900 N |
| Weight | = | 0.008kg/m |
