SKU: 358112.MB

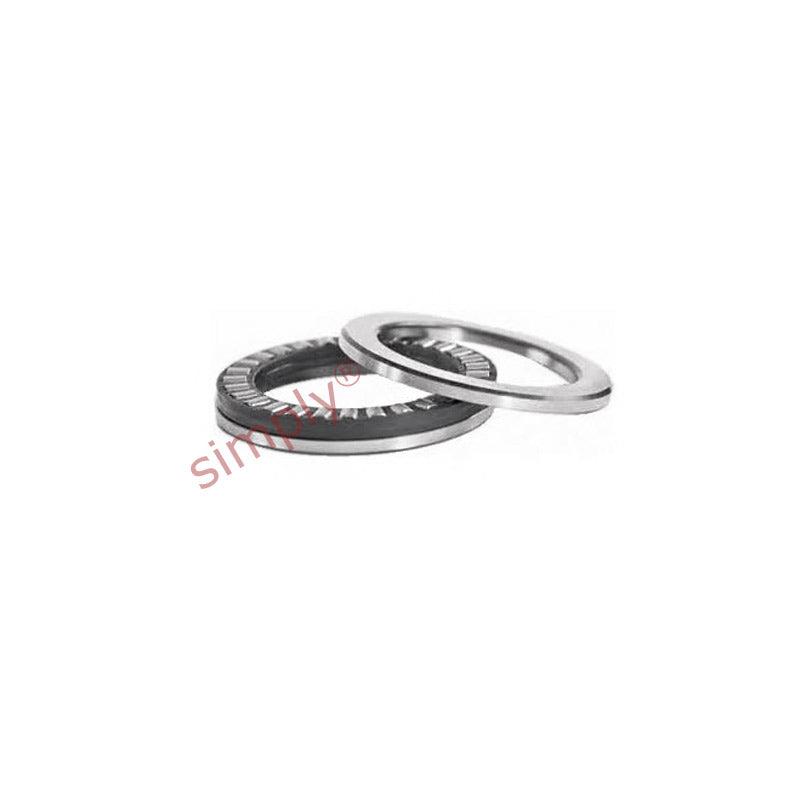

Major Brand 358112 Cylindrical Roller Thrust Bearing 280x520x190mm
Major Brand 358112 Cylindrical Roller Thrust Bearing 280x520x190mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 520mm
- Width:
- 190mm
Technical
Technical
| d | 280mm |
|---|---|
| D | 520mm |
| H | 190mm |
| Dynamic load C | 3900 kN |
| Static load Co | 14600 kN |
| Fatigue load limit Pu | 1060 kN |
| Min load factor A | 17 |
| Reference speed | 110 rpm |
| Limiting speed | 160 rpm |
| Weight | 195 kg |
