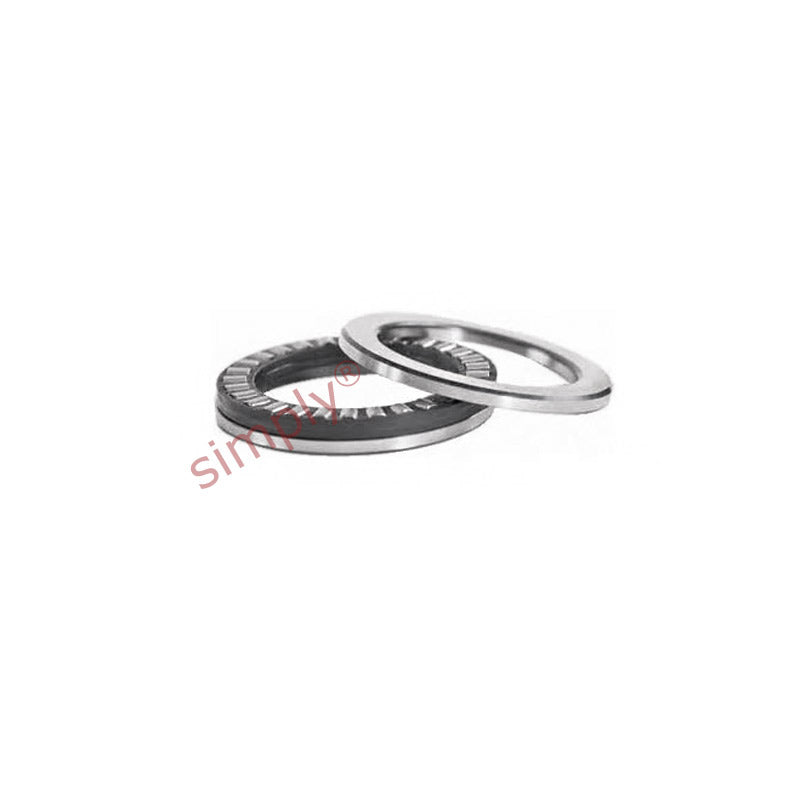

Major Brand 358157 Cylindrical Roller Thrust Bearing 1750x1895x76mm
Major Brand 358157 Cylindrical Roller Thrust Bearing 1750x1895x76mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 1750mm
- Outside Diameter:
- 1895mm
- Width:
- 76mm
Technical
Technical
| d | 1750mm |
|---|---|
| D | 1895mm |
| H | 76mm |
| Dynamic load C | 3200 kN |
| Static load Co | 41500 kN |
| Fatigue load limit Pu | 1900 kN |
| Min load factor A | 140 |
| Reference speed | 130 rpm |
| Limiting speed | 260 rpm |
| Weight | 215 kg |
